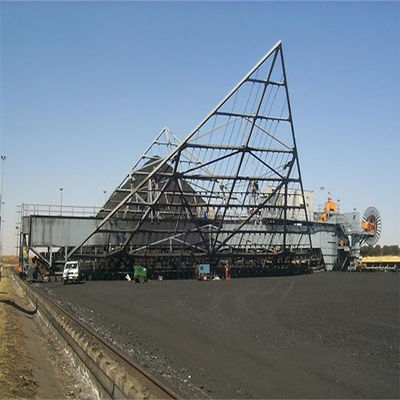

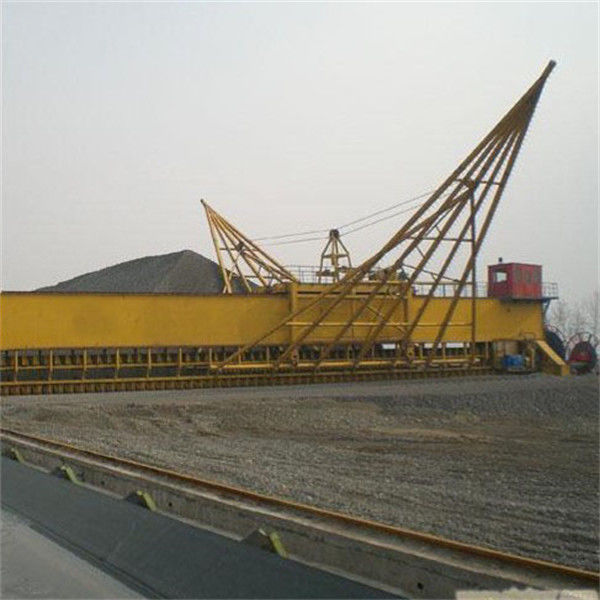

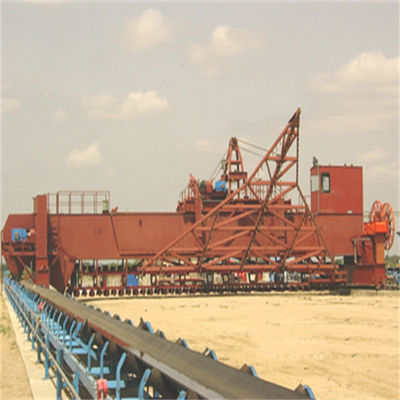

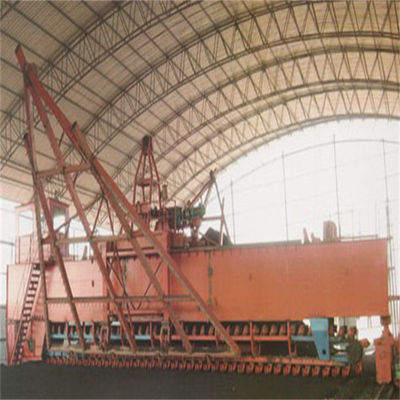

Bridge Type Scraper Reclaiming System For Longitudinal Stockyard
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Scraper Reclaimers | Painting: | International Brand |
|---|---|---|---|
| Color: | Yellow | Gear Reducer: | Top Brand |
| DFT: | 220um | NDT: | UT MT |
| Capacity: | 2000 T/h | Power Source: | 380v Or 440v |
| High Light: | 2000 T/H Coal Stacker Reclaimer,Scraper Reclaimer Longitudinal Stockyard,Longitudinal Stockyard Bridge Type Reclaimer |
||
Product Description
Scraper Reclaimers Longitudinal Bridge Type Scraper Reclaiming Equipment Stacker and Reclaimer
Applications
Longitudinal stockyard bridge scraper reclaimer is widely used in steel, building materials and energy industries. It is mainly used for pre blending of raw materials with high performance, such as limestone, raw coal, clay in cement plant and raw coal in coal power plant.
feature
Longitudinal stockyard bridge scraper reclaimer is designed as compact size, high performance, environment friendly, is an advanced equipment with advance process, efficiency blending, and automatic operation.
composition
The bridge scraper reclaimer is mainly composed of traveling mechanism, scraper system, scraper conveying system, beam, electrical control system, etc
Working principle
The bridge scraper reclaimer starts from the tip of the pile in the center of the stockyard. The scraper system on both sides of the reclaimer moves back and forth along the reclaimer bridge, and the materials on the whole reclaiming surface are scrape to the bottom of the stack through the scraper teeth on the scraper. With the circular movement of the scraper system along the bridge, the materials falling to the bottom of the stack evenly enter the continuous scraper, are taken away by the scraper and unloaded onto the belt conveyor. Driven by the traveling drive system, the reclaimer runs along the rail to the other end of the pile to complete the whole blending and reclaiming process.
An important part of the bridge type scraper reclaiming equipment is the tripper car and integrated belt conveying system which transports material to the bucket-wheel boom and then to the stockpile. The tripper car and conveying system is often equipped with a "bypass function" that enables material to bypass the boom and continue along the conveyor system.
Specification of bridge scraper reclaimer
| description | parameter | unit |
| material | limestone,coal etc | |
| density | 0.8~1.5 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| reclaiming capacity | 200~2000 | t/h |
| rail span | 16~50 | m |
NOTICES
The customer shall provide the following information when place order
- character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
