Gantry Type Scraper Stockyard Reclaimers For Reclaiming Material
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Gantry Type Scraper Reclaimers | Capacity: | 2800 T/h |
|---|---|---|---|
| Painting: | PPG | Color: | Yellow |
| Character: | Gantry Type | Advantage: | Low Maintenance |
| Price: | Reasonable | Application: | Stockyard |
| High Light: | Gantry Type Scraper Reclaimers,Reclaiming Material Bucket Wheel Reclaimer,Stockyard Gantry Stacker Reclaimer |
||
Product Description

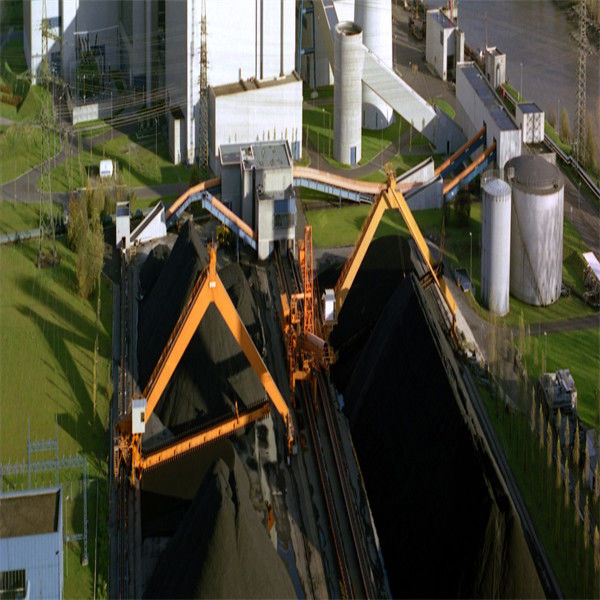

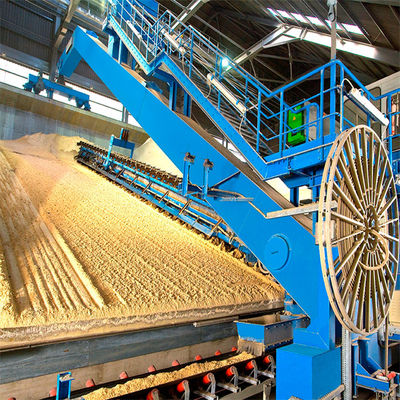

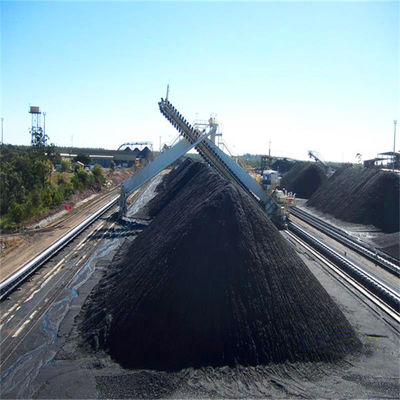

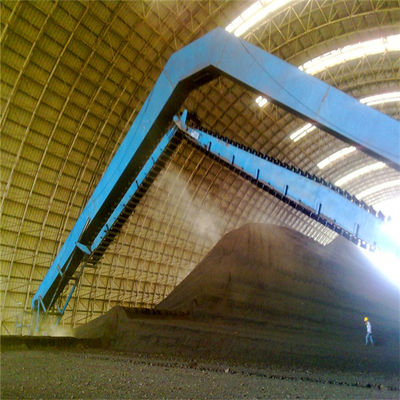

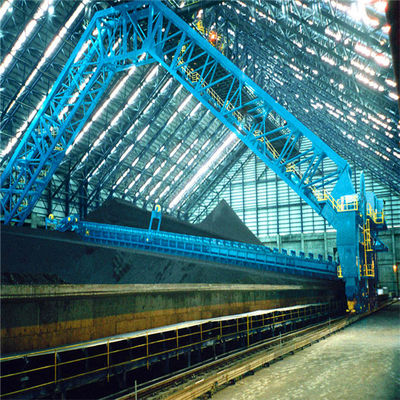

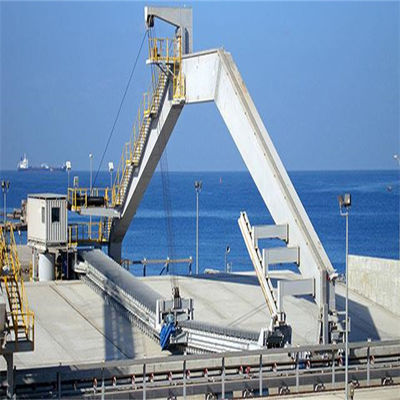

Gantry type scraper reclaimers for reclaiming material in stockyard
The gantry scraper reclaimers are being increasingly used worldwide in both open storage and covered bulk storage. The gantry scraper reclaimers are being used in nearly all industries and for almost all kinds of bulk materials.
The gantry scraper reclaimer is mainly composed of a traveling mechanism, gantry, scraper conveying system, luffing system, electrical control room, etc
Specification of gantry scraper reclaimer
| description | parameter | unit |
| material | Coal, ore, etc | |
| density | 0.8~2.3 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| reclaiming capacity | 200~2000 | t/h |
| rail span | 20~50 | m |
NOTICES
The customer shall provide the following information when placing order
- The character of bulk material
- Stockyard information
- Process flow chart
- Power supply
- Communication and control requirements
