Bucket Wheel Reclaimer Longitudinal Stockyard Materials Reclaiming
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Bucket Wheel Reclaimer | Output: | 2500 T/h |
|---|---|---|---|
| Painting: | Jotun | Color: | Orange |
| Character: | Bucket Wheel | Power Source: | 380v 50hz |
| Price: | Cost Effective | Sand Blasting: | SA2.5 |
| High Light: | Materials Reclaiming Bucket Wheel Reclaimer,Bucket Wheel Reclaimer Longitudinal Stockyard,Bucket Wheel Scraper Reclaimer |
||
Product Description

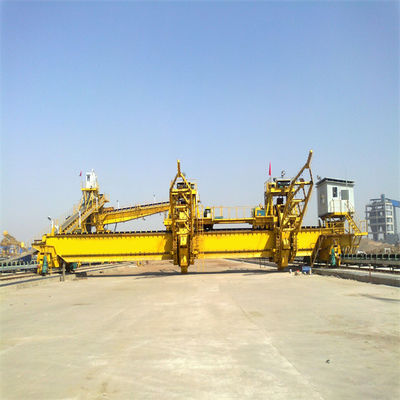

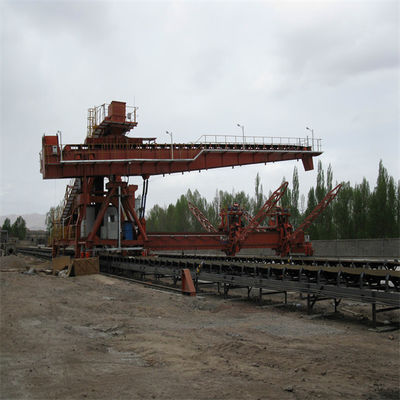

Longitudinal stockyard bridge type bucket wheel reclaimer
Applications
Longitudinal stockyard bridge bucket wheel reclaimer is widely used in raw material stockyards of steel industries to satisfy the process requirements of blending and reclaiming bulk materials such as coal, mineral powder, and fine ore.
composition
The bridge-type bucket wheel reclaimer is mainly composed of a traveling mechanism, scraping system, bucket wheel reclaimer mechanism, beam, electrical control room, etc.
Working principle
The bucket wheel mechanism of the bridge bucket wheel reclaimer runs back and forth along the length of the bridge. On the cross-section of the material pile, the reclaimer of the bucket wheel device reclaiming materials at the different material piles for the first time, and the bucket wheel device rotating around the main beam unloads the materials taken down at the low level into the receiving belt conveyor arranged in the main beam at the high level for the second time, When the reclaimed materials are unloaded to the ground belt conveyor of the system, the third blending of materials is completed. In this way, the process of continuous reclaiming and unloading completes the reclaiming work.
Bucket-wheel reclaimers are all specifically designed based on our client's technical requirements and incorporate various solutions according to the client's specific application. An important part of the bridge-type bucket wheel reclaimer is the tripper car and integrated conveying system which conveys the material to the bucket-wheel boom and then to the stockpile.
Specification of bucket wheel reclaimer
| description | parameter | unit |
| material | coal,iron ore powder etc | |
| density | 0.8~2.3 | t/m3 |
| granularity | <100 | mm |
| moisture | <5 | % |
| reclaiming capacity | 50~3000 | t/h |
| rail span | 16~50 | m |
NOTICES
The customer shall provide the following information when placing an order:
- the character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
