Bridge Type Scraper Stockyard Reclaimer For Stacking And Reclaiming
Product Details:
Place of Origin: | china |
Brand Name: | SSI-ZHIGO |
Certification: | manufacture certificate |
Model Number: | customized |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | US $500,000-1,000,000/ Set |
Packaging Details: | Wooden case or bare |
Delivery Time: | 6 months after receipt of advance payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 40 sets / year |
Detail Information |
|||
Product: | Bridge Type Scraper Reclaimer | Steel Structure: | Carbon Steel |
---|---|---|---|
Brand Of Painting: | Jotun | Color: | Grey |
DFT: | 180um | Character: | Bridge Type |
Cost: | Cost Effective | Capacity: | 1500 T/h |
High Light: | Coal Stacker Reclaimer Stockyard,Coal Stacker Reclaimer Bridge Type |
Product Description

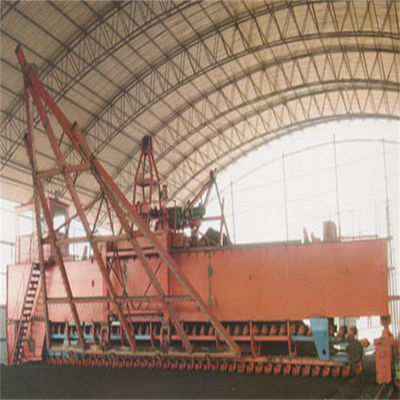

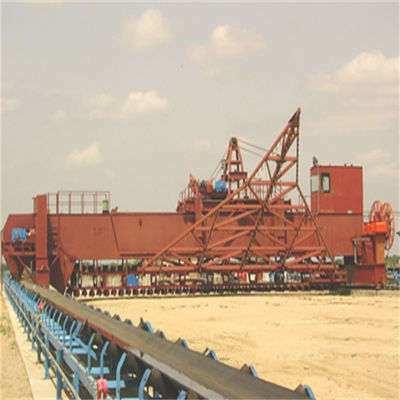

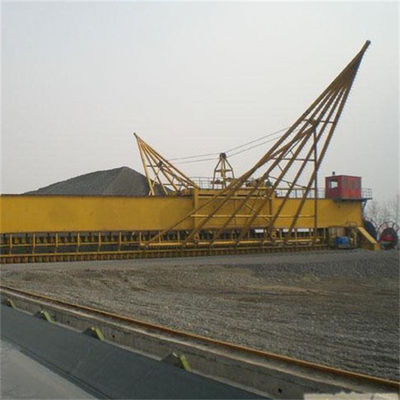

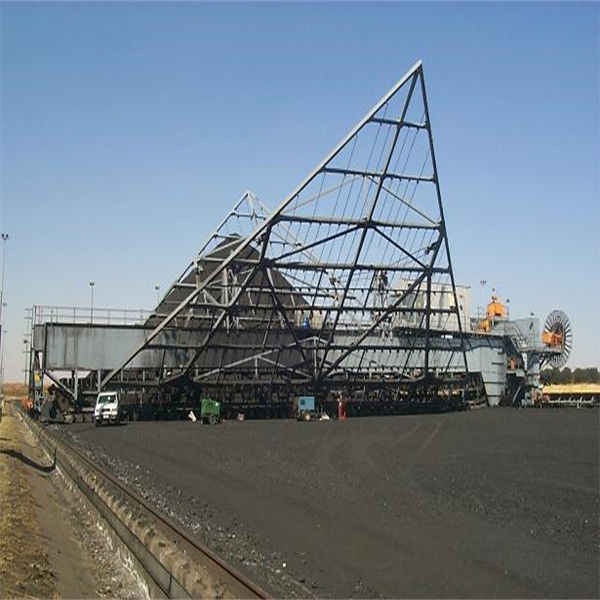

Longitudinal Stockyard Bridge Type Scraper Reclaimer
Introduction of bridge-type scraper reclaimer
Bridge type scraper reclaimers are designed to be high performance and reliability also in challenging bulk materials, cost effectiveness and long service life are outstanding.
Applications
Longitudinal stockyard bridge scraper reclaimer is widely used in steel, building materials, and energy industries. It is mainly used for pre-blending of raw materials with high performance, such as limestone, raw coal, clay in cement plants, and raw coal in coal power plants.
Working principle
The bridge scraper reclaimer starts from the tip of the pile in the center of the stockyard. The scraper system on both sides of the reclaimer moves back and forth along the reclaimer bridge, and the materials on the whole reclaiming surface are scraped to the bottom of the stack through the scraper teeth on the scraper. With the circular movement of the scraper system along the bridge, the materials falling to the bottom of the stack evenly enter the continuous scraper, are taken away by the scraper, and unloaded onto the belt conveyor. Driven by the traveling drive system, the reclaimer runs along the rail to the other end of the pile to complete the whole blending and reclaiming process.
Specification of bridge scraper reclaimer
description | parameter | unit |
material | limestone,coal etc | |
density | 0.8~1.5 | t/m3 |
granularity | <70 | mm |
moisture | <2 | % |
reclaiming capacity | 200~2000 | t/h |
rail span | 16~50 | m |
NOTICES
The customer shall provide the following information when placing order
- The character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements
