Steel Structure Large Part Machining Offshore Wind Power Generator
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-hdcz |
| Certification: | mill certificate |
| Model Number: | SSI-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | pending |
| Packaging Details: | nude |
| Delivery Time: | 3 months |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
|
Detail Information |
|||
| Material: | High Qiuality Steel | Paint: | HEMPEL |
|---|---|---|---|
| Process: | Welding | Color: | Yellow |
| Application: | Offshore And On Shore | Product: | Wind Power Tower |
| Welding Test: | NDT | Fabricate: | Rolled |
| High Light: | Steel Structure Monopile Transition Piece,Offshore Wind Turbine Transition Piece,Welding Offshore Wind Transition Piece |
||
Product Description
Steel structure for offshore and onshore wind power generator
The wind power tower is the supporting piece of the wind power generation system, which is used to support the wind generator and resist the vibration of wind generator.
Manufacturing wind turbines, especiallly the supporting tower, uses a substantial amount of welding equipment. Welding procedures and consumables can vary based on tower requirements for height, design, and location.

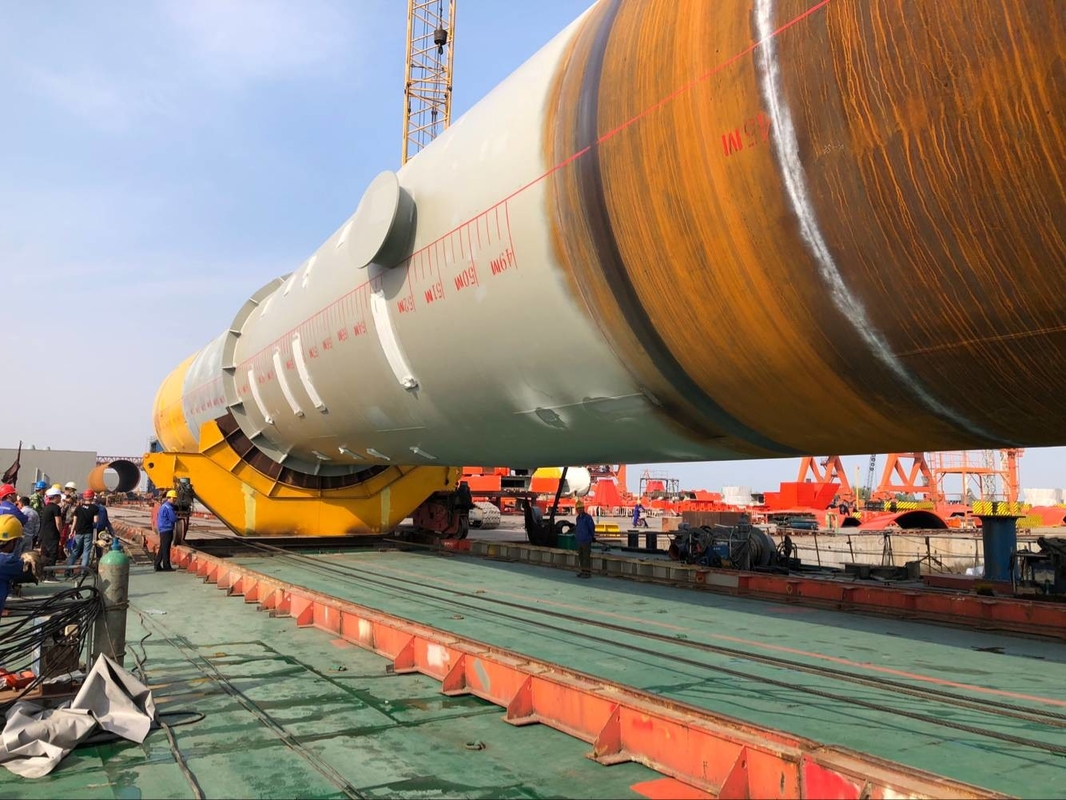

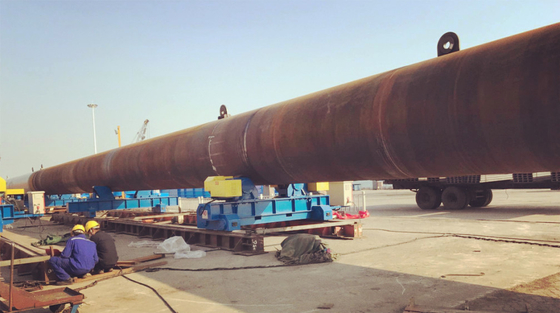

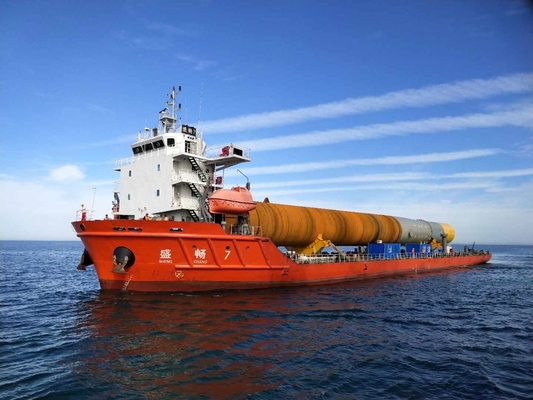

Towers, typically made from carbon steel, consist of three or four fabricated sections each three to five meters in diameter and up to 40 m long. The sections are fabricated out of smaller, individually rolled cylindrical pieces – called cans – which are then welded together with multi-pass butt welds made by submerged arc welding. Smaller can sections are welded on a large assembly line, called a growing line. After assembling the sections, they are transported to the installation site, lifted into place, and bolted together.
Welding requirements for offshore tower construction are impacted by the tower’s large size and associated nacelles, as well as the thicker steel required for strength and fatigue resistance. Joining thicker steel sections with larger weld joints requires using a greater volume of welding consumables, thus requiring additional welding passes. This adds time and cost to the job.
Feature
| product | wind power tower |
| painting | HEMPEL |
| color | yellow |
| material | high quiality steel |
| application | offshore and onshore |
| welding test | NDT |
| steel working | welding and inspected |
| process | rolled |
