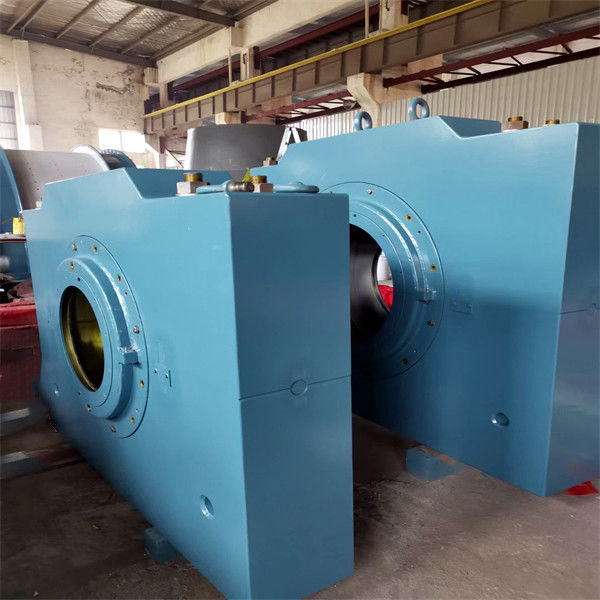

Complex Process Parts Processing For Bearing Pedestal
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1T |
|---|---|
| Price: | US $2500-6000/ T |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 2 -4months after receipt of advance payment |
| Payment Terms: | T/T |
| Supply Ability: | 20000T/year |
|
Detail Information |
|||
| Steel Structure: | Welding | Process: | Machining |
|---|---|---|---|
| Product: | Housing Machining | Character: | High Performance |
| Non-destructive Testing: | UT | Price: | Low Cost |
| High Light: | Complex Process Parts Boring Machining Welding,Boring Milling machining center,Bearing Pedestal Large Part Machining |
||
Product Description
Customized Precision Welded Parts Machining for Large Dimension Assembly
It can undertake the processing of important parts with various large, complex processes and complex structures.
Metalworking equipment
| Name of equipment | Model number | Quantity | SCOPE of application | |
| A | Lathes | |||
| 1 | Vertical Lathe | Numerical control | 1 | Φ 12000 |
| 2 | Vertical Lathe | Numerical control | 1 | Φ 8000 |
| 3 | Vertical Lathe | 1 | Φ 1600 | |
| 4 | Vertical Lathe | C5112A | 1 | Ф 1250 |
| 5 | Horizontal Lathe | Numerical control | 1 | CK61315×12×100T |
| 6 | Horizontal Lathe | CW61200 | 1 | Ф 2000×8000 |
| 7 | Horizontal Lathe | CW61160 | 1 | Ф 1600×6500 |
| 8 | Horizontal Lathe | CW6180 | 2 | Ф 800×3000 |
| 9 | Horizontal Lathe | CW61125 | 2 | Ф 1250×5000 |
| 10 | Horizontal Lathe (remodel) | CW62500 | 2 | Ф 2800×6000 |
| 11 | Common Lathe | CY6140 | 3 | Ф 400×1000 |
| 12 | Common Lathe | CA6140 | 3 | Ф 400×1500 |
| 13 | Common Lathe | C620 | 2 | Ф 400×1400 |
| 14 | Common Lathe | C616 | 1 | Ф 320×1000 |
| 15 | Common Lathe | C650 | 1 | Ф 650×2000 |
| B | Drilling machine | |||
| 1 | Radial drilling machine | Z3080 | 3 | Ф 80×2500 |
| 2 | Radial drilling machine | Z3040 | 2 | Ф 60×1600 |
| 3 | Universal drilling machine | ZW3725 | 3 | Ф 25×880 |
| C | Planing machine | |||
| 1 | Shaper | B665 | 1 | L650 |
| 2 | Hydraulic Shaper | B690 | 1 | L900 |
| 3 | Gantry Planer | HD--16 | 1 | L10000×B1600 |
| D | Milling Machine | |||
| 1 | 4 Coordinate Milling Machine | Numerical control | 1 | 2500×4000 |
| 2 | Gantry milling machine | Numerical contro | 1 | 16mx5mx3m |
| 3 | Gantry milling machine | Numerical contro | 1 | 12mx4mx2.5m |
| 4 | Gantry milling and boring machine | Numerical contro | 1 | Φ 250 |
| 5 | Vertical Milling Machine | XS5054 | 1 | 1600×400 |
| 6 | Horizontal Milling Machine | C62W | 1 | 1250×320 |
| 7 | Horizontal Milling Machine | X60 | 1 | 800×200 |
| 8 | Gantry milling machine | X2014J | 1 | L4000×B1400 |
| 9 | Gantry milling machine | X2010J | 1 | L3000×B1000 |
| 10 | Floor end milling | TX32-1 | 1 | L1500×H800 |
| E | Grinding machine | |||
| 1 | External Grinder | M131W | 1 | Ф 300×1000 |
| 2 | External Grinder | M1432B | 1 | Ф 320×15000 |
| 3 | Surface Grinder | M7130 | 1 | L 1000×300 |
| 4 | Tool grinder | M6025C | 1 | Ф 250 |
| F | Boring machine | |||
| 1 | Floor-standing milling and boring machine | TJK6920 | 1 | X12000 × Y4500 × Z1000 |
| 2 | Boring machine | TSPX619 | 1 | Ф 1000 |
| 3 | Boring machine | T616 | 1 | Ф 800 |
| 4 | Boring machine | T611 | 1 | Ф 800 |
| G | Slotted bed | |||
| 1 | Slotted bed | B5032 | 1 | H320 |
| H | Other machine tools | |||
| 1 | Gear hobbing machine | Y3150 | 1 | Ф 500 M=6 |
| 2 | Hacksaw machine | G7022 | 1 | Ф 220 |
Welding forming equipment
| Name of equipment | Model number | Quantity | SCOPE of application | |
| A | Forming equipment | |||
| 1 | Bending machine | WC67Y-63 | 1 | δ =6 L=2500 |
| 2 | Cut The trigger | Q11-6*2500 | 1 | δ =6 L=2500 |
| 3 | Coiling machine | B20 | 1 | δ =20 L=2000 |
| 4 | Coiling machine | B60 | 1 | δ = 60 L=3200 |
| B | Welding and cutting equipment | |||
| 1 | Silicon rectifying multi-head welder |
ZPG6 | 5 | h= 6 |
| 2 | DC ARC welder | AX-320 | 5 | 320A |
| 3 | DC ARC welder | ZX5-400 | 8 | 400A |
| 4 | AC ARC welder | BX300F | 6 | 300A |
| 5 | AC ARC welder | BX200F | 8 | 200A |
| 6 | DC ARGON ARC welding machine | NSA-160 | 5 | 160A |
| 7 | DC ARGON ARC welding machine | WS-120 | 5 | 120A |
| 8 | Air Plasma cutting | WC67Y-63 | 2 | δ =30 |
| 9 | Flame cutting machine | Numerical contro | 2 | Effective length 5000x20000 |
| 10 | Submerged ARC welding machine | MZ-1000/1250 | 3 | |
| C | Lifting equipment | |||
| 1 | Moving vehicle | 100T/32T | 2 | span 31m |
| 2 | Moving vehicle | 50T/10T | 4 | span 28m |
| 3 | Moving vehicle | 10t | 8 | span 14m |
| 4 | Forklift truck | CPC5K | 1 | 5t |
| 5 | Forklift truck | CPC10K | 1 | 10t |

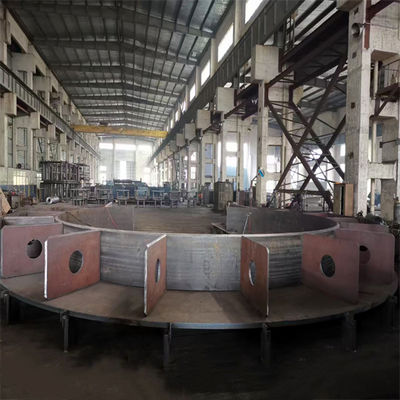

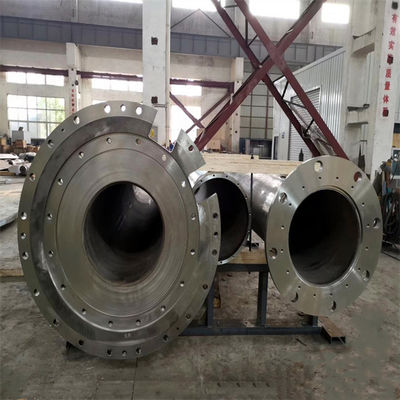

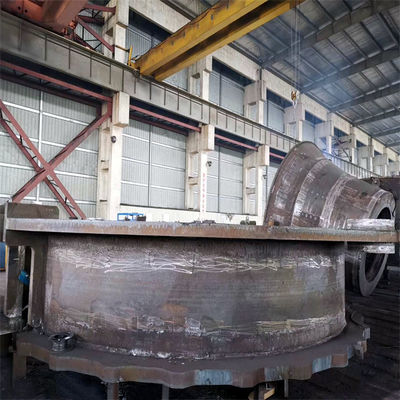

Photos of applications
