CNC Milling Boring Large Part Machining With High Performance
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | SSI-M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1T |
|---|---|
| Price: | $ 2000-100000 |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 4-6 months after receipt of advance payment |
| Payment Terms: | T/T |
| Supply Ability: | 20000 T / year |
|
Detail Information |
|||
| Material: | Advise By User | Painting: | According To ISO12944 |
|---|---|---|---|
| Welding: | According To AWS | Process: | CNC Boring |
| Character: | Durable | Advantage: | High Performance |
| Benefit: | Low Cost | Price: | Cost Effective |
| High Light: | High Precise CNC Milling Machining,High Precise CNC Boring Machining,CNC Milling Large Part Precision Machining |
||
Product Description
Large Dimension CNC Milling , Boring , Machining Services for Heavy Equipment
Brief introduction of the company's manufacturing capacity

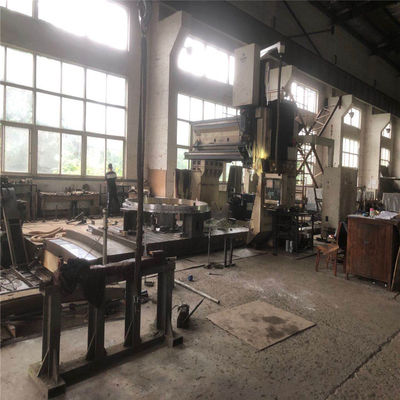

The manufacture base has a total plant area of around 30000 square meters and workshop is equipped with more than 300 sets of various advance manufacture equipment, including 20 sets of CNC precision vertical lathe MODEL: SMVTM12000×50/150, CNC vertical lathe MODEL:DVT8000×30/32, CNC horizontal lathe, MODEL: CK61315×125/32, CNC horizontal lathe MODEL:CK61200×80/32, CNC Grounding boring and milling machine MODEL:TJK6920,etc.Most of the parts are machined by using CNC machine equipment. Theis is a hot treatment furnace with size 10.5m×8m×8m. The manufacture base also equipped with lifting capacity of 25t, 50t, 100t, 200t overhead crane to handle heavy workpiece and assembly work.
Metalworking equipment
| Name of equipment | Model number | Quantity | SCOPE of application | |
| A | Lathes | |||

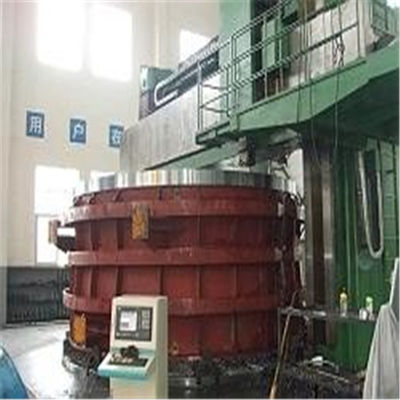

| 1 | Vertical Lathe | Numerical control | 1 | Φ 12000 |
| 2 | Vertical Lathe | Numerical control | 1 | Φ 8000 |
| 3 | Vertical Lathe | 1 | Φ 1600 | |
| 4 | Vertical Lathe | C5112A | 1 | Ф 1250 |

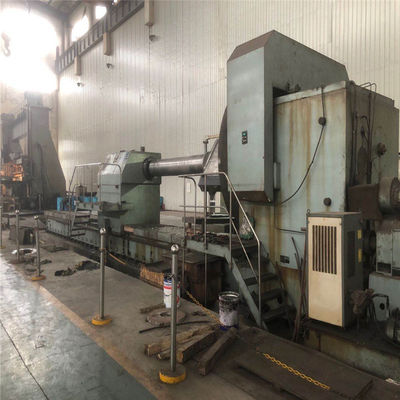

| 5 | Horizontal Lathe | Numerical control | 1 | CK61315×12×100T |
| 6 | Horizontal Lathe | CW61200 | 1 | Ф 2000×8000 |
| 7 | Horizontal Lathe | CW61160 | 1 | Ф 1600×6500 |
| 8 | Horizontal Lathe | CW6180 | 2 | Ф 800×3000 |
| 9 | Horizontal Lathe | CW61125 | 2 | Ф 1250×5000 |
| 10 | Horizontal Lathe (remodel) | CW62500 | 2 | Ф 2800×6000 |
| 11 | Common Lathe | CY6140 | 3 | Ф 400×1000 |
| 12 | Common Lathe | CA6140 | 3 | Ф 400×1500 |
| 13 | Common Lathe | C620 | 2 | Ф 400×1400 |
| 14 | Common Lathe | C616 | 1 | Ф 320×1000 |
| 15 | Common Lathe | C650 | 1 | Ф 650×2000 |
| B | Drilling machine | |||
| 1 | Radial drilling machine | Z3080 | 3 | Ф 80×2500 |
| 2 | Radial drilling machine | Z3040 | 2 | Ф 60×1600 |
| 3 | Universal drilling machine | ZW3725 | 3 | Ф 25×880 |
| C | Planing machine | |||
| 1 | Shaper | B665 | 1 | L650 |
| 2 | Hydraulic Shaper | B690 | 1 | L900 |
| 3 | Gantry Planer | HD--16 | 1 | L10000×B1600 |
| D | Milling Machine | |||
| 1 | 4 Coordinate Milling Machine | Numerical control | 1 | 2500×4000 |
| 2 | Gantry milling machine | Numerical contro | 1 | 16mx5mx3m |
| 3 | Gantry milling machine | Numerical contro | 1 | 12mx4mx2.5m |
| 4 | Gantry milling and boring machine | Numerical contro | 1 | Φ 250 |
| 5 | Vertical Milling Machine | XS5054 | 1 | 1600×400 |
| 6 | Horizontal Milling Machine | C62W | 1 | 1250×320 |
| 7 | Horizontal Milling Machine | X60 | 1 | 800×200 |
| 8 | Gantry milling machine | X2014J | 1 | L4000×B1400 |
| 9 | Gantry milling machine | X2010J | 1 | L3000×B1000 |
| 10 | Floor end milling | TX32-1 | 1 | L1500×H800 |
| E | Grinding machine | |||
| 1 | External Grinder | M131W | 1 | Ф 300×1000 |
| 2 | External Grinder | M1432B | 1 | Ф 320×15000 |
| 3 | Surface Grinder | M7130 | 1 | L 1000×300 |
| 4 | Tool grinder | M6025C | 1 | Ф 250 |
| F | Boring machine | |||
| 1 | Floor-standing milling and boring machine | TJK6920 | 1 | X12000 × Y4500 × Z1000 |
| 2 | Boring machine | TSPX619 | 1 | Ф 1000 |
| 3 | Boring machine | T616 | 1 | Ф 800 |
| 4 | Boring machine | T611 | 1 | Ф 800 |
| G | Slotted bed | |||
| 1 | Slotted bed | B5032 | 1 | H320 |
| H | Other machine tools | |||
| 1 | Gear hobbing machine | Y3150 | 1 | Ф 500 M=6 |
| 2 | Hacksaw machine | G7022 | 1 | Ф 220 |
Welding forming equipment
| Name of equipment | Model number | Quantity | SCOPE of application | |
| A | Forming equipment | |||
| 1 | Bending machine | WC67Y-63 | 1 | δ =6 L=2500 |
| 2 | Cut The trigger | Q11-6*2500 | 1 | δ =6 L=2500 |
| 3 | Coiling machine | B20 | 1 | δ =20 L=2000 |
| 4 | Coiling machine | B60 | 1 | δ = 60 L=3200 |
| B | Welding and cutting equipment | |||
| 1 | Silicon rectifying multi-head welder |
ZPG6 | 5 | h= 6 |
| 2 | DC ARC welder | AX-320 | 5 | 320A |
| 3 | DC ARC welder | ZX5-400 | 8 | 400A |
| 4 | AC ARC welder | BX300F | 6 | 300A |
| 5 | AC ARC welder | BX200F | 8 | 200A |
| 6 | DC ARGON ARC welding machine | NSA-160 | 5 | 160A |
| 7 | DC ARGON ARC welding machine | WS-120 | 5 | 120A |
| 8 | Air Plasma cutting | WC67Y-63 | 2 | δ =30 |
| 9 | Flame cutting machine | Numerical contro | 2 | Effective length 5000x20000 |
| 10 | Submerged ARC welding machine | MZ-1000/1250 | 3 | |
| C | Lifting equipment | |||
| 1 | Moving vehicle | 100T/32T | 2 | span 31m |
| 2 | Moving vehicle | 50T/10T | 4 | span 28m |
| 3 | Moving vehicle | 10t | 8 | span 14m |
| 4 | Forklift truck | CPC5K | 1 | 5t |
| 5 | Forklift truck | CPC10K | 1 | 10t |
Products and services available
Large and medium sized finishing parts
Material handling equipment
Storage equipment
Conveying equipment
Feeding equipment
Component of conveying system
Belt conveyor parts
If you need above products, please contact us!
Shanghai Sunshine Industrial Technology Co. , Ltd.
