12 Cube Meter clamshell grab buckets Wireless Remote Controlled
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | ABV/BV/CCS |
| Model Number: | 12 cube meter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 15000-27000 |
| Packaging Details: | nude |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 300 set/y |
|
Detail Information |
|||
| Product: | Radio Remote Controlled | Wear Plate: | Hardox 500 |
|---|---|---|---|
| Model: | 12 Cube Meter | Color: | White |
| Painting: | Jotun | Character: | Single Rope |
| Feature: | Energy Saving | Type: | Clamshell Grab |
| High Light: | 12 Cube Meter Clamshell Grab Buckets,Clamshell Grab Buckets Remote Controlled,Wireless Clamshell Orange Peel Grab |
||
Product Description
12 cube meter wireless remote controlled clamshell grab bucket
Single rope remote-controlled clamshell grab is a single rope type grab by using radio control technology to handle the loading/unloading of bulk material, generally operated in combination with single hook lifting equipment but solving the problems of low efficiency and man-power intensive compared with traditional single rope operated grabs. Especially suitable for deck cranes operation with high reliability is easy to operate and can be opened in any position during grab opening for releasing of materials.
Technical specification
| volume | 6~12m³ |
| SWL | 25t |
| density | 0.8~2.5t/m³ |
| dome | 35° |
| Dia of closing rope | 36mm |
| length of closing rope | 12m |
| stroke of closing rope | 4.21m |
| Dia of pulley | 650mm |
| dead weight | 9000kg |

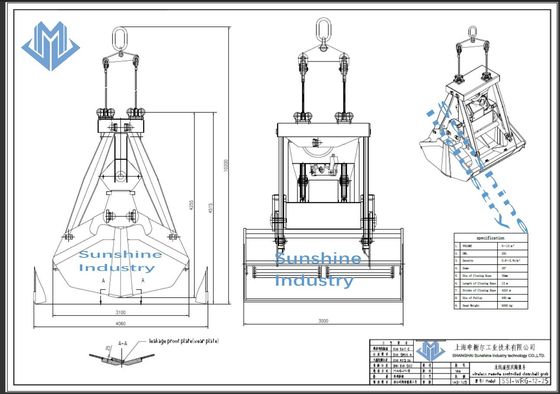

General drawing

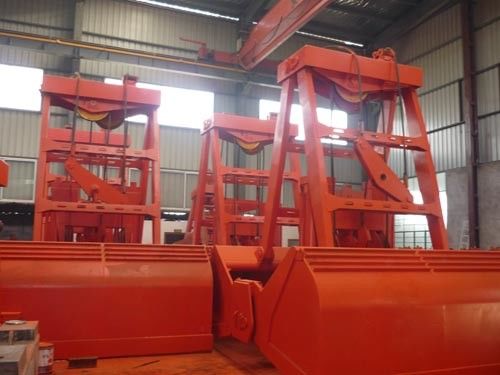

photos of our factory
