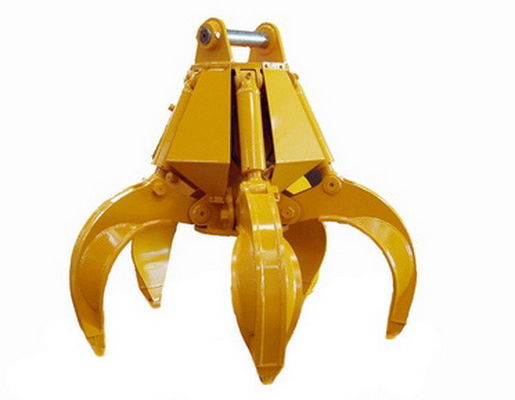

Electric Hydraulic Orange Peel Grab For Domestic Garbage Handling
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | ABV/BV/CCS |
| Model Number: | 6.3 cube meter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 30000-100000 |
| Packaging Details: | nude |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 300 set/y |
|
Detail Information |
|||
| Product: | Electric Hydraulic Orange Peel Grab | Wear Plate: | Hardox400 |
|---|---|---|---|
| Model: | 6.3 Cube Meter | Color: | Orange |
| Painting: | PPG | Character: | Electro-hydraulic |
| Feature: | Durable | Type: | Orange Peel |
| High Light: | Specially Designed Grab Bucket,Class Certificated Hydraulic Orange Peel Grab,Corrosion Resistant Surface Treatment Grab Bucket |
||
Product Description
electric hydraulic orange peel grab for domestic garbage handling

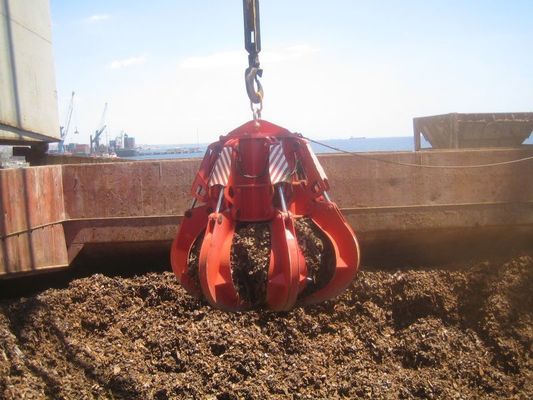

Electro hydraulic orange peel grab bucket is suitable to handle fine and granular bulk materials such as fertilizers, grain, coal, coke, iron ore, sand, fly ash, pebbles etc. and has been widely used in marine operations, incinerating plants etc. Suitable for operating with various kinds of lifting equipments such as deck cranes, overhead cranes and gantry crane.
Technical specification
| volume | 6.3m³ |
| power of motor | 55 kw |
| close time | 20s |
| Max working pressure | 23 Mpa |
| number of peels | 6 |
| type of orange peel grab | closed |
| density | 2.5t/m³ |
| work time of E-motor | 40% ED |
| protect grade | IP56 |
| design temperature | -10°~+40° |
| dead weight | 8770kg |
General drawing

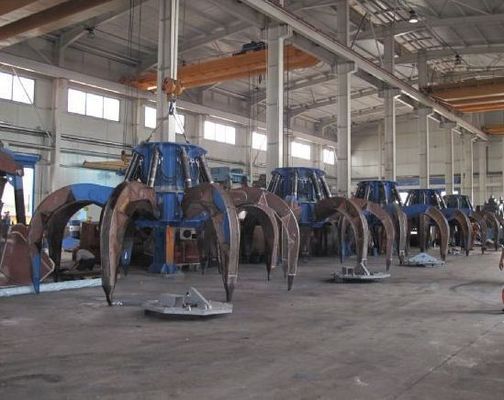

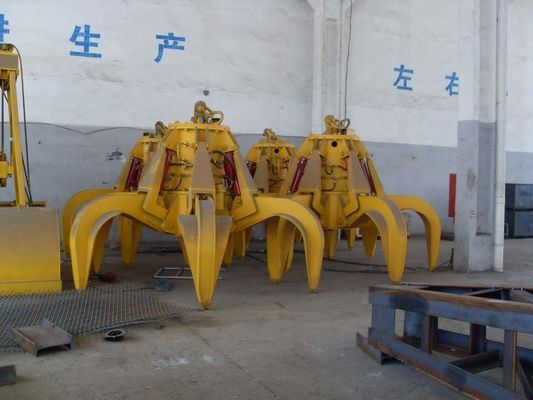

Photos of our factory
