Electric Hydraulic Orange Peel Grab Bucket For Garbage Incineration Power Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | ABV/BV/CCS |
| Model Number: | 3 cube meter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 30000-100000 |
| Packaging Details: | nude |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 300 set/y |
|
Detail Information |
|||
| Material: | Carbon Steel | Wear Plate: | Hardox Or NM400 |
|---|---|---|---|
| Model: | 3 Cube Meter | Color: | Advise By User |
| Painting: | According To ISO12944 | Character: | Electric Hydraulic |
| Feature: | Reliable And Durable | Type: | Orange Peel Grab |
| High Light: | 3 Cube Meter Orange Peel Grab,Electric Orange Peel Grab Bucket,Garbage Incineration Power Plant Grab Buckets |
||
Product Description
Electric hydraulic orange peel grab bucket for garbage incineration power plant
Electro hydraulic grab is a kind of grab with its own hydraulic system such as motor and hydraulic pump, which is driven by external power supply to open and close. The grab depends on the forward and reverse rotation of the motor or the hydraulic valve to control the opening and closing of the grab. The grab is equipped with its own hydraulic system, and the main components of the hydraulic system, such as valve block, seal and hydraulic cylinder, are made of European and American brands. The hydraulic pump adopts constant power pump and hydraulic servo system. Electro hydraulic bulk cargo grab is an effective equipment for bulk cargo handling such as sand, coal, mineral powder, ore and cement in various harsh environments.
Technical specification
| volume | 3m³ |
| power of motor | 45 kw |
| close time | 19s |
| Max working pressure | 21 Mpa |
| number of peels | 6 |
| type of orange peel grab | closed |
| density | 4t/m³ |
| work time of E-motor | 40% |
| protect grade | IP56 |
| design temperature | -10°~+40° |
| dead weight | 7600kg |

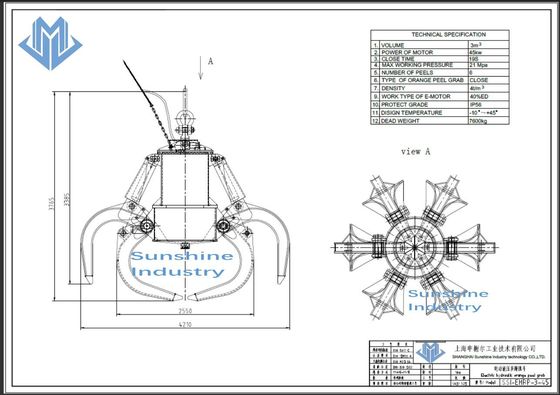

General drawing

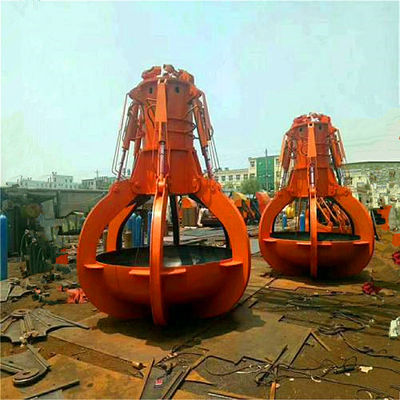

Photos of our factory
