Material Stockyard Bucket Wheel Stacker Reclaimer With Frame Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Material: | Carbon Steel | Painting: | According To ISO12944 |
|---|---|---|---|
| Color: | Advise By User | Capacity: | 2200 T/h |
| Character: | Durable | Advantage: | High Performance |
| Benefit: | Low Cost | Price: | Reasonable |
| High Light: | Bucket Wheel Stacker Reclaimer,Stockyard Bucket Wheel Stacker,Frame Structure Wheel Stacker |
||
Product Description

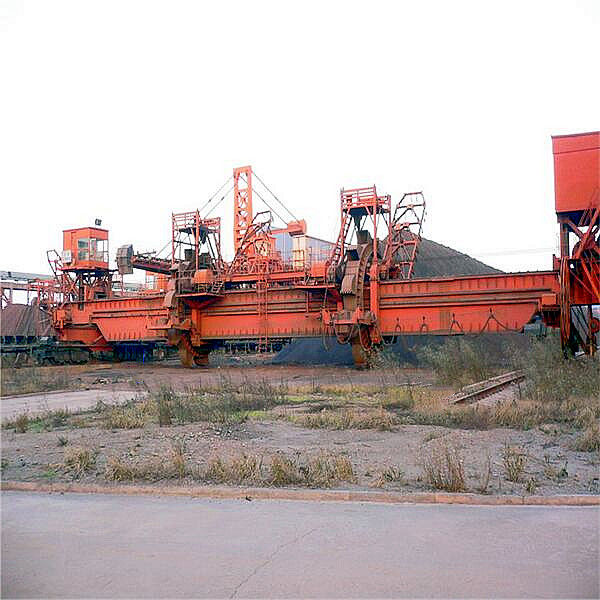

Bucket Wheel Stacker Reclaimer with Frame Structure in Rectangular Raw Material Yard Bucket Wheel Reclaimer
Applications
Gantry bucket wheel stacker and reclaimer is mainly applicated for coal power plants, industrial and mining enterprises and port bulk material stockyards.
feature
The gantry bucket wheel stacker and reclaimer was design as compact, high efficiency, automation and environmental friendly. The working area of the bucket wheel stacker and reclaimer is flexible, and the bulk material stacking and reclaiming operation can be carried out on different material pile.
composition
The gantry bucket wheel stacker and reclaimer is mainly composed of traveling mechanism, stacker belt conveyor, reclaimer belt conveyor, mobile belt conveyor, movable beam, lifting mechanism, tail stacker transfer mechanism, tail car, traveling device, steel structure, water spray system, lubrication system, electrical room, etc
Working principle
The gantry bucket wheel stacker and reclaimer is used in the Longitudinal stockyard to stacking and reclaiming the materials in the stockyard, unload them to the reclaiming belt conveyor and stacking belt conveyor, and then transport them out through the ground belt conveyor to complete the reclaiming and stacking work; The stacking and reclaiming belt conveyor can be reversed. During stacking and reclaiming, the bulk materials of the ground belt conveyor are unloaded to the stacking and reclaiming belt conveyor by the rear part, and the materials are stacked to the stock pile by the mobile belt conveyor as supposed by the traveling mechanism and Luffing mechanism.
specification of gantry bucket wheel stacker and reclaimer
| description | parameter | unit |
| bulk material | coal,coke,ore | |
| density | 0.6~2.2 | t/m3 |
| granularity | <300 | mm |
| moisture | <2 | % |
| stacking capacity | 200~3000 | t/h |
| reclaiming Capacity | 100~2000 | t/h |
| rail span | 20~60 | m |
NOTICES
The customer shall provide the following information when place order
- character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
