High Performance Continuous Bucket Elevator With Central Chain
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | mill certificate |
| Model Number: | SSI-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 220000 |
| Packaging Details: | nude |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 50 set/year |
|
Detail Information |
|||
| Material: | Carbon Steel | Product: | Bucket Elevator |
|---|---|---|---|
| Painting: | HEMPEL | Type: | Chain Type |
| Capacity: | 1100 Cube Meter/h | Welding: | According To AWS |
| Character: | High Performance | Advantage: | Durable |
| High Light: | Central Chain Continuous Bucket Elevator,High Performance Continuous Bucket Elevator |
||
Product Description

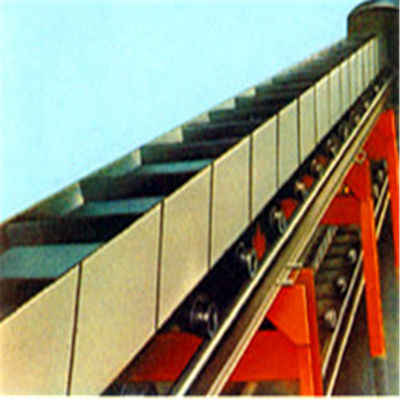

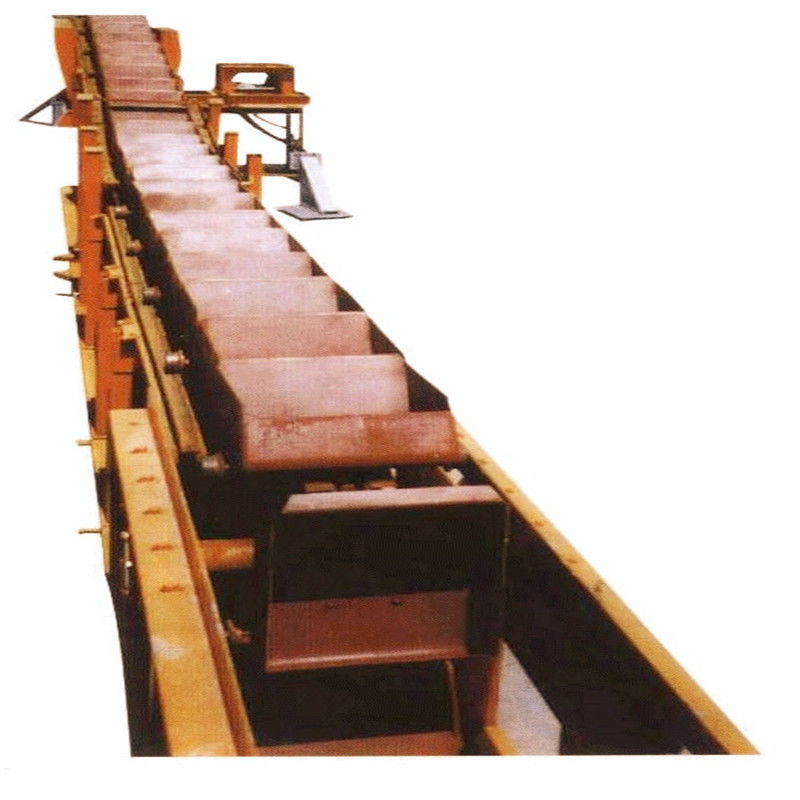

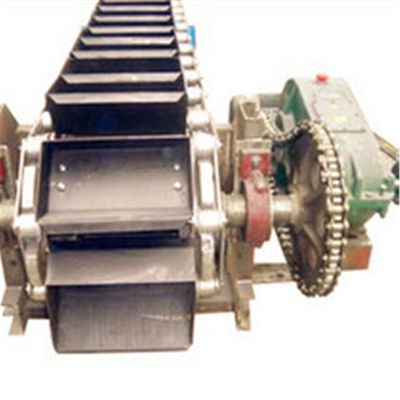

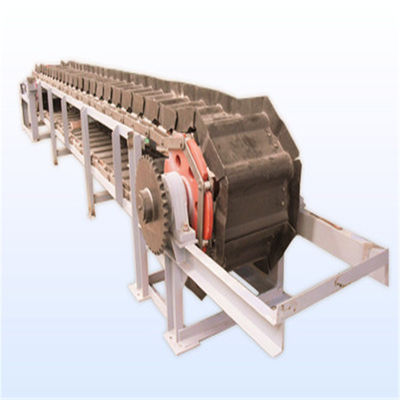

Continuous bucket elevator chain bucket elevator with central chain
Generally, continuous bucket elevators are built according to the customer`s technical specifications. So every project is unique and tailor-made to clients. The SSI continuous bucket elevator is customized and continuously developed to suit increasing plant and process requirements, offering this availability combined with performance, flexibility, and service life. The SSI continuous bucket elevator is designed for efficient Horizontal transport of any kind of bulk material under severe operating conditions and in continuous operation. It`s a good solution for bulk materials conveying in vertical or high incline angle conveying system.
The return device is a heavy-duty feeder. By setting a chain at the bottom of the plate feeder, it is conducive to the use of the chain to transport and collect the return material, so as to effectively increase the return material recovery efficiency and improve the conveying efficiency of the plate feeder.
Specification of bucket elevator
| Model | Capacity m³/h | Max largest lump | ||||
| percentage | ||||||
| 10 | 25 | 50 | 75 | 100 | ||
| NE30 | 32 | 90 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 170 | 130 | 105 | 80 | 65 | 55 |
| NE200 | 210 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 380 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 275 | 220 | 165 | 135 | 110 |

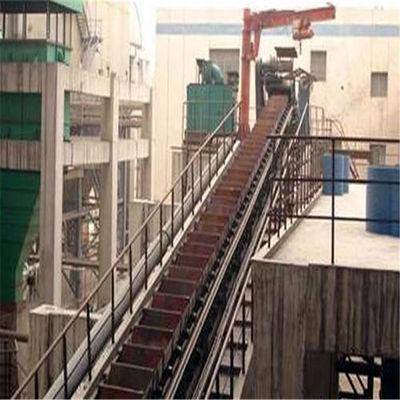

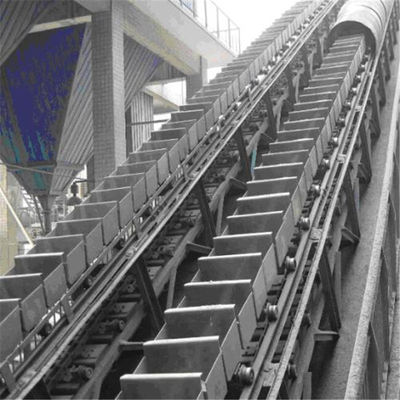

Applications
Case1
Case2
Case3
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment includes a train tipping machine, ship unloader, ship loader, etc. Our conveying equipment includes a belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment includes bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition, Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.
