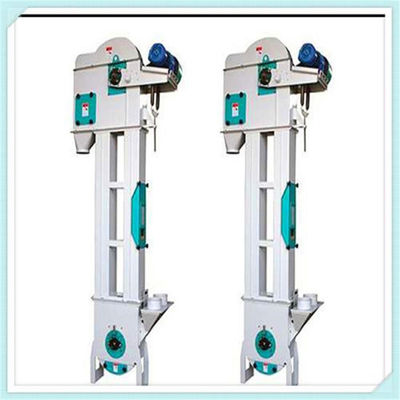

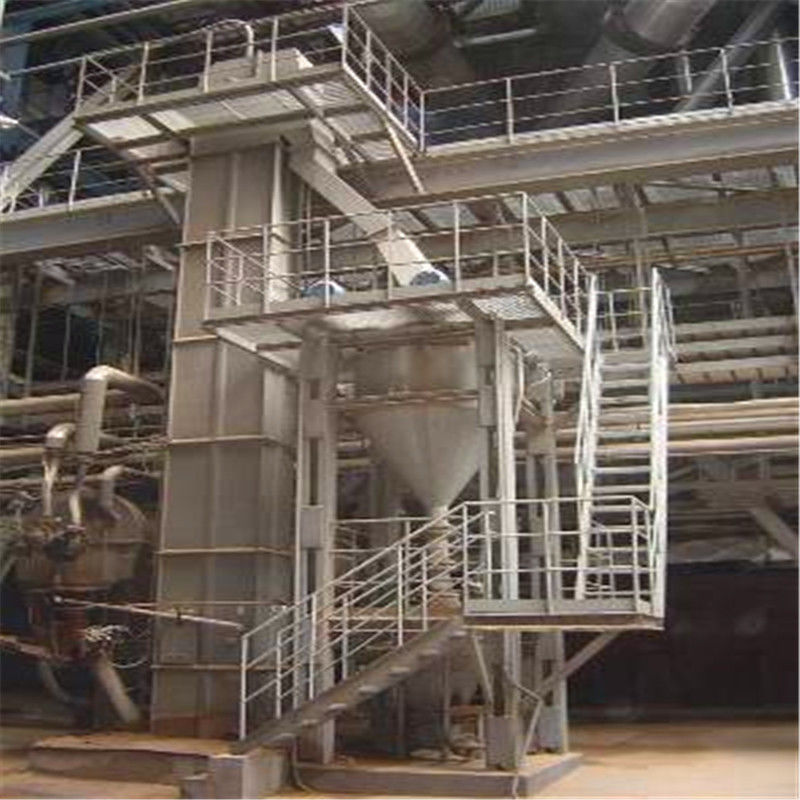

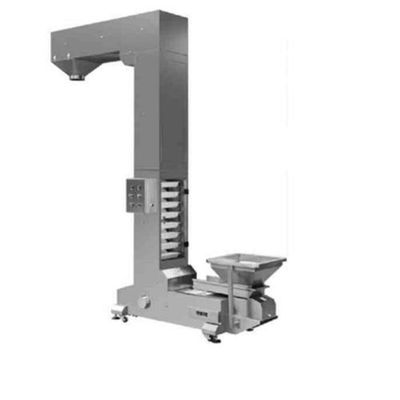

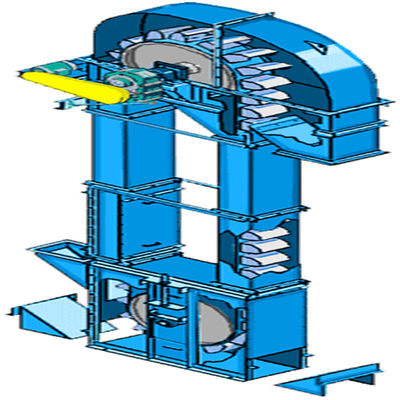

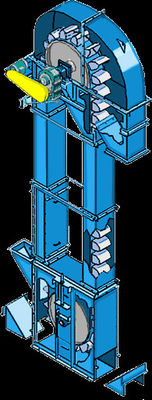

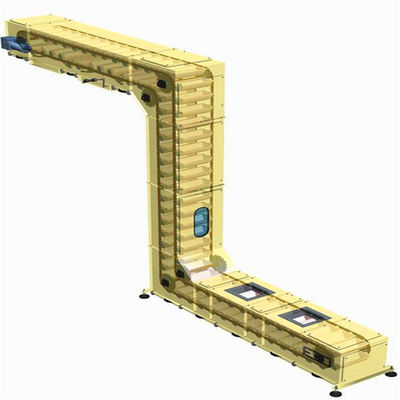

Vertical Conveying Heavy Duty Bucket Elevator Conveyor For Bulk Materials

Vertical Conveying Heavy Duty Bucket Elevator Conveyor For Bulk Materials

Product Details:

Place of Origin: China
Brand Name: SSI
Certification: mill certificate
Model Number: SSI-700

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 220000
Packaging Details: nude
Delivery Time: 120 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 50 set/year
Get Best Price Contact Now

Detail Information

Description: Bucket Elevator Color: Silver
Painting: PPG Type: Electrical Driven
Capacity: 700t/h Sand Blasting: SA2.5
Character: Reliable Advantage: Low Maintenance
High Light:

Heavy Duty Bucket Elevator Conveyor

,

Vertical Conveying Bucket Elevator Conveyor

,

Bulk Materials Continuous Bucket Elevator

Product Description

Customized heavy duty bucket elevator for bulk materials vertical conveying



The SSI bucket elevators are customized and continuously developed to suit increasing plant and process requirements, offering this availability combine with performance, flexibility, and service life. The SSI bucket elevators are designed for efficient vertical transport of any kind of bulk material under severe operating conditions and in continuous operation.

Chain plate conveyor is composed of a power unit (motor), transmission shaft, drum, tensioning device, sprocket, chain, bearing, lubricant, chain plate, etc. The main two parts of conveying with animal materials are: chain, which uses its circular motion to provide traction power; The metal plate is used as the carrier in the conveying process. The principle is to use a series of chains fixed on the traction chain to provide traction and use the metal plate as the bearing body to guide the material to be transported in the horizontal or inclined direction. Chain plate conveyor is widely used in all walks of life, such as electric power, metallurgy, winemaking, chemical industry, medical treatment, machinery manufacturing, and so on. To meet the various needs of the production site, we can design the conveying machine in the automation line to meet the requirements and objectives.





​Specification of bucket elevator

Type ZBT300 ZBT400 ZBT500 ZBT610 ZBT750
Capacity M3/h 130 185 230 280 350
Maximum size mm 100 150
Bucket type   ZH or SHL
Bucket width Mm 300 400 500 610 750
Capacity L 5 8 10 12 15
Speed m/s 0.3-1
Distance mm 250
Chain spacing Mm 125
Maximum elevation proportion800kg/m3 55 50 45 42 40
proportion1200kg/m3 51 46 43 42 38
proportion1600kg/m3 48 44 42 40 38
proportion2000kg/m3 45 42 41 38 36



About us



Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment includes a train tipping machine, ship unloader, ship loader, etc. Our conveying equipment includes a belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment includes bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition, Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.



Photos of our factory

Vertical Conveying Heavy Duty Bucket Elevator Conveyor For Bulk Materials 0

Vertical Conveying Heavy Duty Bucket Elevator Conveyor For Bulk Materials 1

Vertical Conveying Heavy Duty Bucket Elevator Conveyor For Bulk Materials 2

Vertical Conveying Heavy Duty Bucket Elevator Conveyor For Bulk Materials 3
