Bag Filter Type Dust Collector Eco Hopper For Grab Unloading
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | mill certificate |
| Model Number: | 40 cube meter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 200000 |
| Packaging Details: | nude |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 85 set/yesr |
|
Detail Information |
|||
| Material: | Carbon Steel | Color: | Advise By User |
|---|---|---|---|
| Type: | Cartridge-Type | Painting: | According To ISO12944 |
| Welding: | According To AWS | Model: | 40 Cube Meter |
| Character: | Rail Mounted | Price: | Cost Effective |
| High Light: | Dust Collector Eco Hopper,Bag Filter Type Dust Collector,Grab Unloading Eco Hopper |
||
Product Description
Customized bag filter-type dust collector Eco hopper for grab unloading
The SSI ECO hopper is designed as a dust-controlled, grab or belt conveyor unloading hopper, is an economical and ecologically sensitive solution. It`s a customized design to suit the property of any bulk materials. And fulfill all needs for the efficient import of dry bulk materials.
The SSI ECO hoppers are designed based on the client`s specification requirement.
Bulk cargo handling is one of the port work projects. In the process of bulk cargo circulation, to speed up the shipment speed and save costs, the "four bulk" technology, namely bulk, bulk transportation, bulk unloading, and bulk storage technology, is usually adopted. For example, in ocean transportation, unpackaged bulk cargo is usually loaded directly and transported. After arriving at the destination port, it is unloaded to the truck by bulk unloading and then transported to the storage warehouse by the latter. In the process of bulk unloading, the grab bucket of the gantry crane usually grabs the bulk cargo from the ship and then pours the grabbed bulk cargo into a hopper. The bulk cargo poured into the hopper will automatically flow to the truck below it or onto the belt conveyor.
The hopper is suitable for loading and unloading almost all bulk materials. Such as gypsum, cement clinker, slag, sulfur, nickel ore, iron ore, refined copper ore, coal, bentonite, soda powder, limestone, grain, etc.
Technical specification
| output | 400t/h |
| material | clinker/gypsum |
| density | 1.4t/m³ |
| volume | 50m³ |
| application | discharge to belt conveyor |
| pressure on each support landing | 30t |
| full load of hopper | 80t |
| size of discharge opening | 500mm*400mm |
| power of fan motor | 22kw*4+11kw*1 |
| noise | less than 80 DB |
| travel speed | 10m/min |
| power consumption | 145kw |
| dead weight | 125t |
General drawing

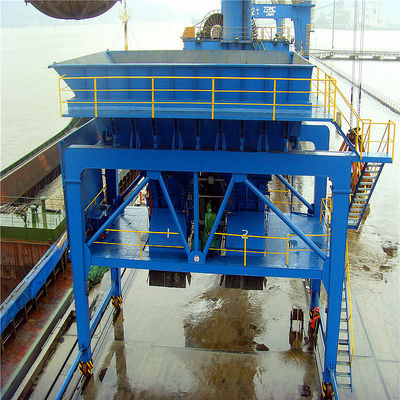

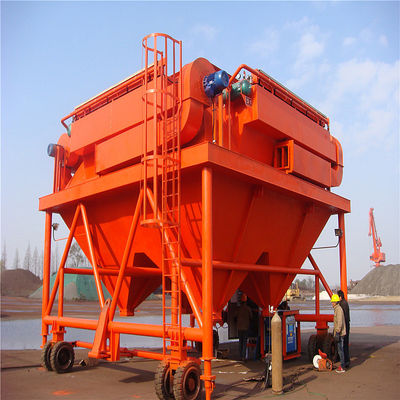

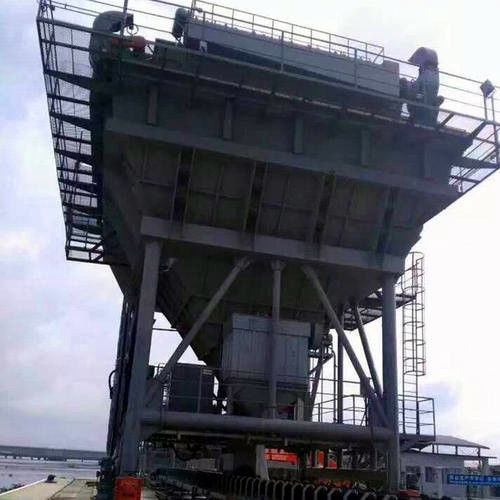

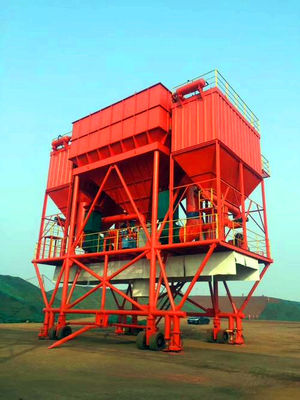

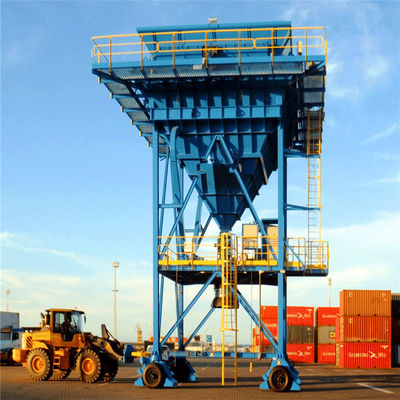

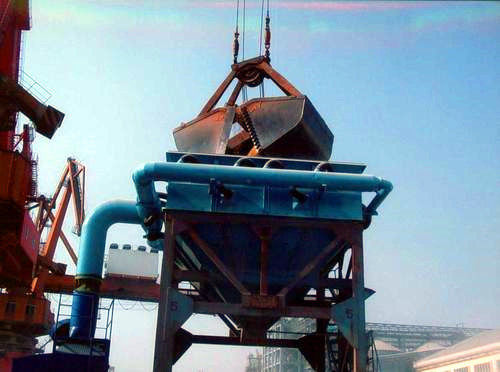

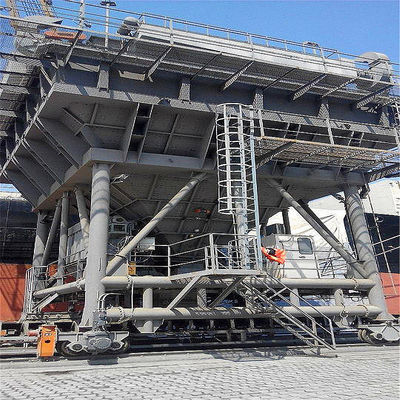

Applications
case1
case2
case3
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment includes a train tipping machine, ship unloader, ship loader, etc. Our conveying equipment includes a belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment includes bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition, Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.
To be sincere and keep moving! Shanghai Sunshine Industrial Technology Co., Ltd. is always dedicated to high-quality products and services!
