Product Details:

Place of Origin: China
Brand Name: SSI
Certification: manufacture certificate
Model Number: customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $1,500,000-5,000,000/ Set
Packaging Details: Wooden case or bare
Delivery Time: 6 months after receipt of advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets / year
Get Best Price Contact Now

Detail Information

Product: Ship Unloader System Painting: Jotun
DFT: 320um Capacity: 2000 T/h
Motor: Seimens Advantage: Reliable
Color: Red Material: High Quality Steel
High Light:

At Port Terminal Mechanical Ship Unloader

,

Coal Unloading Grab Ship

,

Heavy Duty Vessel Grab Unloader

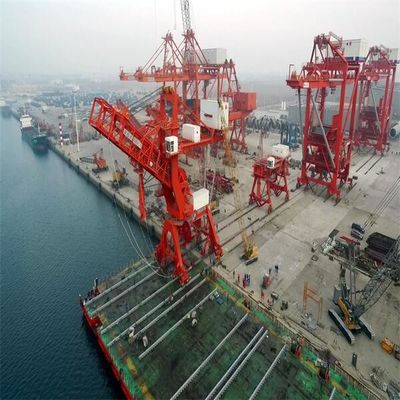

Product Description

Ship Unloader System Belt Type Continuous Ship Unloading System Continuity Ship Unloading System



Mechanical (electric) differential bridge-type ship unloader is a suite of effective, reliable and high performance unloading appliances customized to the port and terminal business handling dry bulk cargoes.

All the stackers are designed based on our client`s technical specifications and applications, so the technical discussion meeting is essential before the project proposal stage.



model Self-propelled trolley Main and auxiliary trolley Mechanical differential Electric differential
weight(%) 100% 80% 60~65% 60%
stability 1.4 1.5 1.7~1.8 1.7~1.8
Wire rope lengtg 1 6 2.5 2.5
Power consumption 1 2.5 1.1 1.2
Operating cost(%) 100% 95% 90% 90%
Fault and maintenance Breakdown rate high and hard to maintain Breakdown rate low and easy to maintain but wire rope system is complicated Wire rope system is simple, easy to change gear reducer is specific design,hard to maintain and change Wire rope system is simple,gear reducer is standard,easy to maintain,electrical system is complicated
Cost of fundamental and facilities(%) 100% 95% 85% 85%



model Mechanical differential Electric differential
weight(t) 1100 1050

Rail distance(m)

Wheel distance(m)

18~28

18

18~28

18

No of wheel

Wheel pressure T

Driver KW

40

50

7.5*10

40

50

7.5*10

Luffing mechanism KW 90~110 90~110
Four drums mechanism KW

Start 2X500KW

Runing 315KW

4*400



Specification of ship unloader
vessel capacity unload time lift capacity
of grab
weight of
single grab
cycle
times
one cycle density of
bulk material
rail
distance
rail wheel
pressure
extending reach distance
of grab
rear reach
distance of grab
hoisting
speed
lowering
speed
trolley
speed
traveling
speed
DWT t/h hours T T   s t/m3 m   kN m m m/min m/min m/min m/min
1000 340 2.94 10 5.5 61.82 58.23529412 0.85 16 QU80 350 23 21 90 100 120 25
5000 500-2000 2.5~10 12.5~48 7.3~28 67.42~71.43 52.56-53.4 0.8~0.9 10.5~20 QU80~100 245~600 24~28 8~16 100~160 120~190 150~240 20
8000 1000 8.00 25 14.8 67.57 53.28   20 QU100 350 28 17 135 150 180 20
20000 800-1000 20.00 22~30 13.3~14.8 55.56~67.57 53.28~64.8 0.85 16~22 QU80~120 330~530 24~38 21 12~135 135~150 180 20~25
30000 1250 24.00 32 19.6 63.78 56.448 0.95 16 QU100 505 33 14 135 150 220 25
35000 800~1600 21.88~43.75 22~40.5 12.8~25 62.52~76.19 54~57.6 0.85~0.95 14~24 QU80~100 330~530 27~31 11~19 120~135 135~180 180~220 20~25
50000 1250~1650 33.3~40 32~40 19.5~25 60~67.35 56.16~60 0.85~0.95 22~26 QU100~120 500~520 30~33 17~19 150~200 180~240 180~220 20~25
70000 1250~1750 40~56 34~42 20.5~25.75 52.08~68 53~69.12 0.85~0.9 22~30 QU100~120 500~600 32~40 16.5~27 160~220 190~240 180~240 20~25
100000 1000~1800 55.56~100 30~46 18~27.6 55.56~75.12 48~64.8 0.8-1 22~26 QU120 450~600 30~38 17~20 135~180 150~220 180~240 25
150000 1800~2100 71.42~83.33 45~52 27.2~31.5 63.16~66.67 54~57 0.90~2.4 24~28 QU120 600~736 39~41.5 19~24 160~200 190~240 200~240 20~25



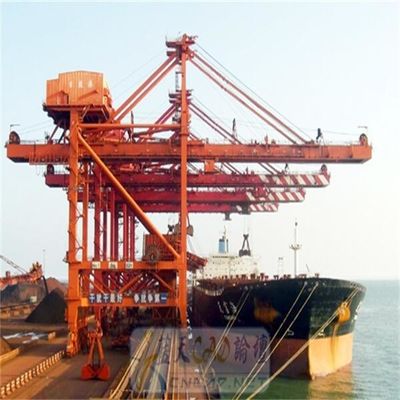

Main structure of bridge-type grab ship unloader

Mechanism of bridge-type grab ship unloader





1.Traveling mechanism

The driving method of traveling mechanism is multi drive. Traveling mechanism is composed of driving device, traveling support device and safety protection device. The traveling support device adopts the wheel group with balance beam, the wheel adopts the rolling bearing wheel with double wheel edges, and the number of driving wheels shall not be less than 50% of the total number of wheels.
Most of the driving unit are three in one reducers, which can also be combined by reducers, brakes and motors through couplings

Heavy Duty Ship Unloader System For Coal Unloading At Port Terminal 0

2. Main structure of bridge-type ship unloader

The connection of the main steel structure of the ship unloader adopts rigid connection, and the rigidity of the whole machine is strong enough.
Rolling T-section steel is adopted for the front and rear girder of the ship unloader and the trolley rail beam without fillet weld, to avoid weld fatigue cracking that may occur when the trolley wheels are rolled back and forth.

Heavy Duty Ship Unloader System For Coal Unloading At Port Terminal 1

3. Hopper system

The hopper unloading system of the ship unloader is composed of coal hopper, feeder, fork hopper, coal spreading baffle, windshield, two way chute and buffer bracket.

Heavy Duty Ship Unloader System For Coal Unloading At Port Terminal 2

4. Grab bucket hoisting mechanism(mechanical differential four drums)

The traveling of the mechanical differential grab ship unloader trolley depends on a driving motor to connect the two differential reducers through the a coupling. Through the differential transformation of the gearbox, the grab lifting is transformed into the transverse movement of the trolley.

Heavy Duty Ship Unloader System For Coal Unloading At Port Terminal 3

5.Grab bucket(wire rope reeving system)

Heavy Duty Ship Unloader System For Coal Unloading At Port Terminal 4

6. Luffing mechanism

The luffing mechanism of bridge-type grab ship unloader is composed of motor, brake, reducer, drum and safety brake.

Heavy Duty Ship Unloader System For Coal Unloading At Port Terminal 5

7.Wire rope reeving system of luffing mechanism

Heavy Duty Ship Unloader System For Coal Unloading At Port Terminal 6

8. Cantilever safety hook device

When the cantilever of the ship unloader is luffing to 80 °, the safety hook device is used to hang the cantilever and loosen the steel wire rope at the same time. The safety hook is usually driven by hydraulic cylinder or electro-hydraulic actuator.

Heavy Duty Ship Unloader System For Coal Unloading At Port Terminal 7

9.Wire rope reeving system of wire rope support trolley

Heavy Duty Ship Unloader System For Coal Unloading At Port Terminal 8



Overview of production process



Heavy Duty Ship Unloader System For Coal Unloading At Port Terminal 9



Heavy Duty Ship Unloader System For Coal Unloading At Port Terminal 10
