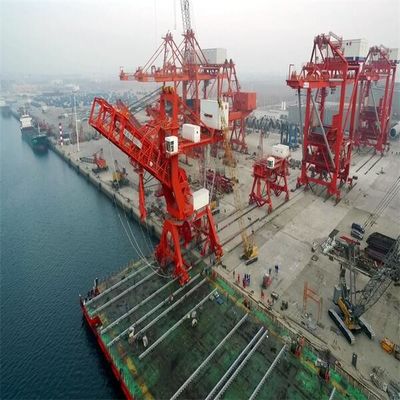

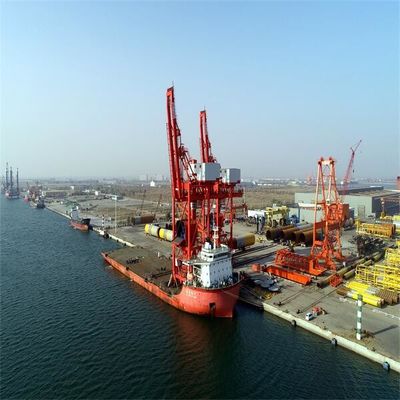

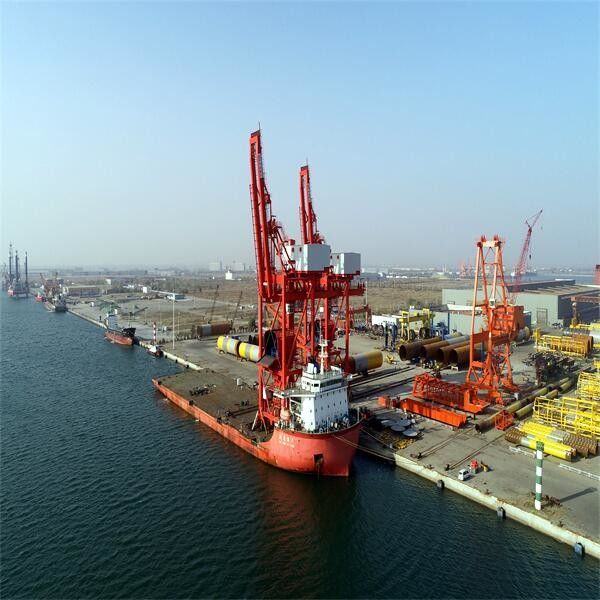

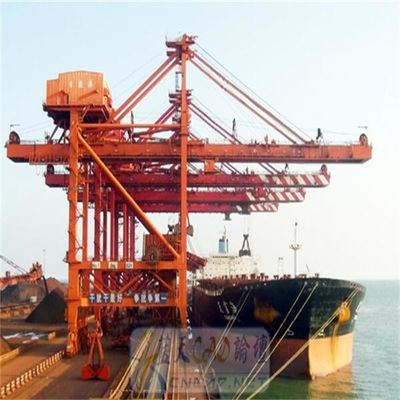

Heavy Duty Grab Type Ship Unloader System For Coal Unloading From Ship
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Product: | Ship Unloading System | Painting: | PPG |
|---|---|---|---|
| Color: | By Buyer | Capacity: | 1800 T/h |
| Character: | Durable | Advantage: | High Performance |
| Steel Structure: | Carbon Steel | Welding: | GMAW |
| High Light: | Heavy Duty Mechanical Ship Unloader,Bridge Type Grab Bucket Unloader,Grab Type Ship Unloading Systems |
||
Product Description
Mechanical(electric)differential bridge-type ship unloader
Mechanical (electric) differential bridge-type ship unloader is a suite of effective, reliable and high performance unloading appliances customized to the port and terminal business handling dry bulk cargoes.
The hopper unloading system of the ship unloader is composed of coal hopper, feeder, fork hopper, coal spreading baffle, windshield, two way chute and buffer bracket.
| model | Self-propelled trolley | Main and auxiliary trolley | Mechanical differential | Electric differential |
| weight(%) | 100% | 80% | 60~65% | 60% |
| stability | 1.4 | 1.5 | 1.7~1.8 | 1.7~1.8 |
| Wire rope lengtg | 1 | 6 | 2.5 | 2.5 |
| Power consumption | 1 | 2.5 | 1.1 | 1.2 |
| Operating cost(%) | 100% | 95% | 90% | 90% |
| Fault and maintenance | Breakdown rate high and hard to maintain | Breakdown rate low and easy to maintain but wire rope system is complicated | Wire rope system is simple, easy to change gear reducer is specific design,hard to maintain and change | Wire rope system is simple,gear reducer is standard,easy to maintain,electrical system is complicated |
| Cost of fundamental and facilities(%) | 100% | 95% | 85% | 85% |
| model | Mechanical differential | Electric differential |
| weight(t) | 1100 | 1050 |
|
Rail distance(m) Wheel distance(m) |
18~28 18 |
18~28 18 |
|
No of wheel Wheel pressure T Driver KW |
40 50 7.5*10 |
40 50 7.5*10 |
| Luffing mechanism KW | 90~110 | 90~110 |
| Four drums mechanism KW |
Start 2X500KW Runing 315KW |
4*400 |
| Specification of ship unloader | ||||||||||||||||
| vessel | capacity | unload time | lift capacity of grab |
weight of single grab |
cycle times |
one cycle | density of bulk material |
rail distance |
rail | wheel pressure |
extending reach distance of grab |
rear reach distance of grab |
hoisting speed |
lowering speed |
trolley speed |
traveling speed |
| DWT | t/h | hours | T | T | s | t/m3 | m | kN | m | m | m/min | m/min | m/min | m/min | ||
| 1000 | 340 | 2.94 | 10 | 5.5 | 61.82 | 58.23529412 | 0.85 | 16 | QU80 | 350 | 23 | 21 | 90 | 100 | 120 | 25 |
| 5000 | 500-2000 | 2.5~10 | 12.5~48 | 7.3~28 | 67.42~71.43 | 52.56-53.4 | 0.8~0.9 | 10.5~20 | QU80~100 | 245~600 | 24~28 | 8~16 | 100~160 | 120~190 | 150~240 | 20 |
| 8000 | 1000 | 8.00 | 25 | 14.8 | 67.57 | 53.28 | 20 | QU100 | 350 | 28 | 17 | 135 | 150 | 180 | 20 | |
| 20000 | 800-1000 | 20.00 | 22~30 | 13.3~14.8 | 55.56~67.57 | 53.28~64.8 | 0.85 | 16~22 | QU80~120 | 330~530 | 24~38 | 21 | 12~135 | 135~150 | 180 | 20~25 |
| 30000 | 1250 | 24.00 | 32 | 19.6 | 63.78 | 56.448 | 0.95 | 16 | QU100 | 505 | 33 | 14 | 135 | 150 | 220 | 25 |
| 35000 | 800~1600 | 21.88~43.75 | 22~40.5 | 12.8~25 | 62.52~76.19 | 54~57.6 | 0.85~0.95 | 14~24 | QU80~100 | 330~530 | 27~31 | 11~19 | 120~135 | 135~180 | 180~220 | 20~25 |
| 50000 | 1250~1650 | 33.3~40 | 32~40 | 19.5~25 | 60~67.35 | 56.16~60 | 0.85~0.95 | 22~26 | QU100~120 | 500~520 | 30~33 | 17~19 | 150~200 | 180~240 | 180~220 | 20~25 |
| 70000 | 1250~1750 | 40~56 | 34~42 | 20.5~25.75 | 52.08~68 | 53~69.12 | 0.85~0.9 | 22~30 | QU100~120 | 500~600 | 32~40 | 16.5~27 | 160~220 | 190~240 | 180~240 | 20~25 |
| 100000 | 1000~1800 | 55.56~100 | 30~46 | 18~27.6 | 55.56~75.12 | 48~64.8 | 0.8-1 | 22~26 | QU120 | 450~600 | 30~38 | 17~20 | 135~180 | 150~220 | 180~240 | 25 |
| 150000 | 1800~2100 | 71.42~83.33 | 45~52 | 27.2~31.5 | 63.16~66.67 | 54~57 | 0.90~2.4 | 24~28 | QU120 | 600~736 | 39~41.5 | 19~24 | 160~200 | 190~240 | 200~240 | 20~25 |
Main structure of bridge-type grab ship unloader
Mechanism of bridge-type grab ship unloader
1.Traveling mechanism
2. Main structure of bridge-type ship unloader
3. Hopper system
4. Grab bucket hoisting mechanism(mechanical differential four drums)
5.Grab bucket(wire rope reeving system)
6. Luffing mechanism
7.Wire rope reeving system of luffing mechanism
8. Cantilever safety hook device
9.Wire rope reeving system of wire rope support trolley
Overview of production process
