Adjustable Telescopic Conveyor Belt For Bulk Material Handling
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | mill certificate |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 10000-60000 |
| Packaging Details: | nude |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 220 set/ year |
|
Detail Information |
|||
| Product: | Belt Conveyor | Color: | Grey |
|---|---|---|---|
| Type: | Telescopic | Painting: | PPG |
| Character: | Durable | Length: | Customized |
| Width: | Customized | Benefit: | Low Cost |
| High Light: | Adjustable Telescopic Conveyor Belt,Bulk Material Handling Telescopic Conveyor Belt,Telescopic Heavy Duty Belt Conveyor |
||
Product Description

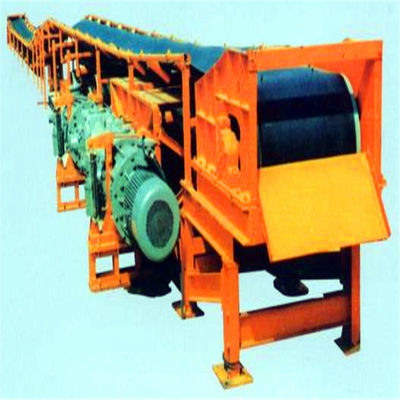

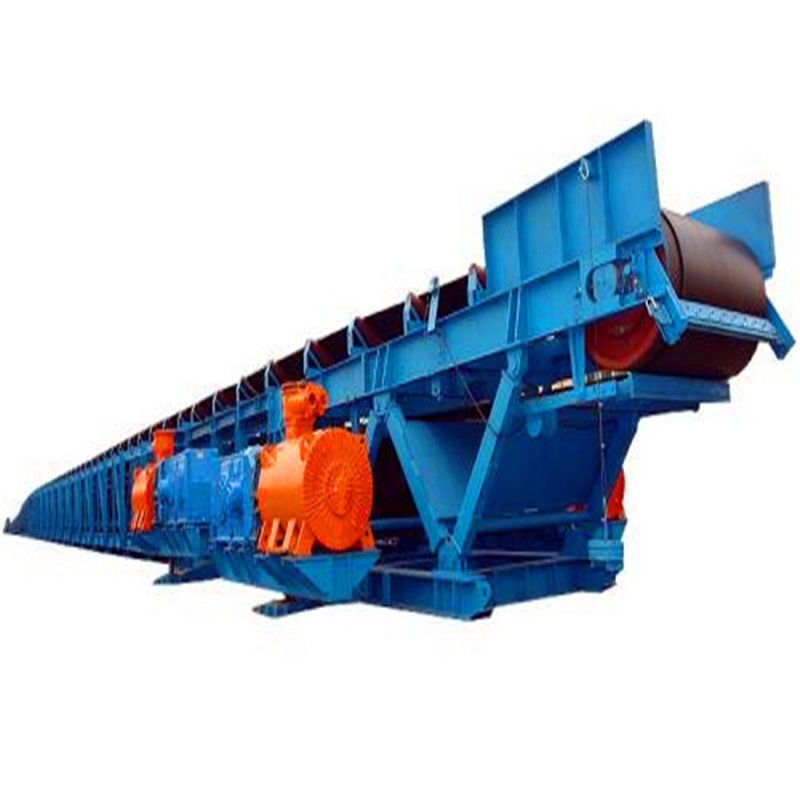

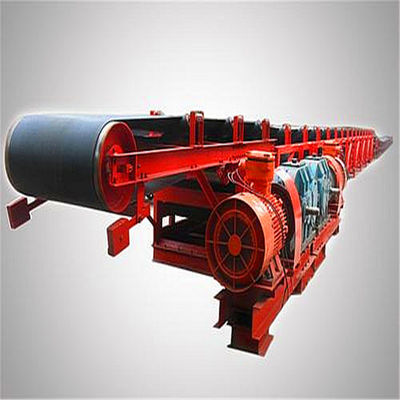

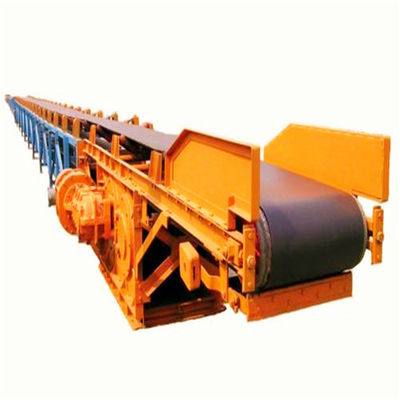

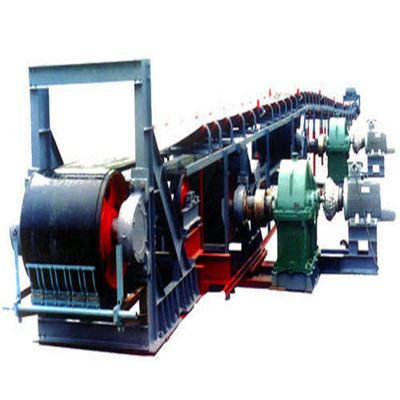

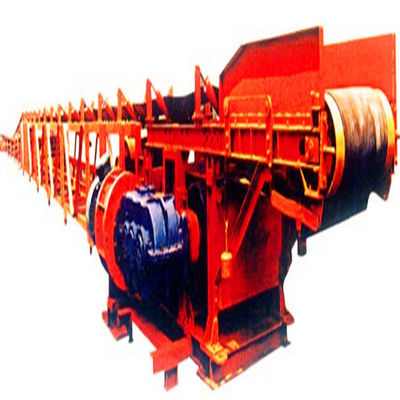

Customized discharge height-adjustable telescopic conveyor for bulk material handling
Shanghai Sunshine industry technology has been designing and supplying bulk materials conveying systems for industries around the world for the past six years. Whether you are looking for a piece of equipment or a complete turnkey system, we are happy to offer you a customized solution, just customized manufacture the equipment to your specification requirement. We can provide bulk material handling systems for both new projects and existing systems. It`s used for handling comment material such as coal, clinker, aggregates, biomass products grain gypsum, iron ore, limestone, sulfur.
The SSI conveyor belt system apart from our competitors is not just the good quality, but the customized solutions we provide. We care about our client's unique needs from facility layout, to material property, and process goals, to design a system that operates at optimal efficiency and accomplishes exactly what the customer is looking for. Our familiarity with a hundred of the material allows us to provide you with the best handling solution possible.
specification of standard telescopic conveyor belt
|
Width (mm) |
Telescopic device | Telescopic stroke(mm) | Walking speed(M/s) | Walking time(s) | Driving device | notes | ||
| electric vehicle | reducer | brake | ||||||
| B=1400 | 2 | 3450 | 0.0085 | 40.6 |
Y112M4 4KW 1440/min |
XWE4-95 I=187 |
TJ2-200 1.6dan-m |
High support structure |
| 3 | 6200 | 0.085 | 73 |
Y112M4 4KW 1440/min |
XWE4-95 I=187 |
TJ2-200 1.6dan-m |
Floor type structure | |
| B=1200 | 2 | 3050 | 0.085 | 35.9 |
Y112M4 4KW 1440/min |
XWE4-95 I=187 |
TJ2-200 1.6dan-m |
High support structure |
| 3 | 5700 | 0.085 | 67 |
Y112M4 4KW 1440/min |
XWE4-95 I=187 |
TJ2-200 1.6dan-m |
Floor type structure | |
| B=1000 | 2 | 2800 | 0.085 | 32.9 |
Y112M4 4KW 1440/min |
XWE4-95 I=187 |
TJ2-200 1.6dan-m |
High support structure |
| 3 | 5450 | 0.085 | 64 |
Y112M4 4KW 1440/min |
XWE4-95 I=187 |
TJ2-200 1.6dan-m |
Floor type structure | |
