Heavy Duty High Incline Angles Conveyor Belt System For Bulk Material Handling
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | mill certificate |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 10000-60000 |
| Packaging Details: | nude |
| Delivery Time: | 120 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 220 set/ year |
|
Detail Information |
|||
| Item: | Belt Conveyor | Color: | Red |
|---|---|---|---|
| Type: | High Incline Angles | Painting: | International Brand |
| Character: | Reliable | Length: | Customized |
| Width: | Customized | Material: | High Quality Steel |
| High Light: | Heavy Duty Loading Belt Conveyor,Steel Heavy Duty Belt Conveyor,Bulk Material Handling Vertical Conveyor Belt |
||
Product Description
Customized heavy duty high incline angles belt conveyor system for bulk material handling
Shanghai Sunshine industry technology co., Ltd has been designing and supplying client bulk materials conveying systems for industries around the world since the past six years. Whether you are looking for a piece of equipment or a complete turnkey system, we are happy to offer you a customized solution, just customized to you specification requirement. We can provide bulk material handling system both new projects and existing systems. It`s used for handling comment material such as: coal, clinker, aggregates, biomass products grain gypsum, iron ore, limestone, sulfur.

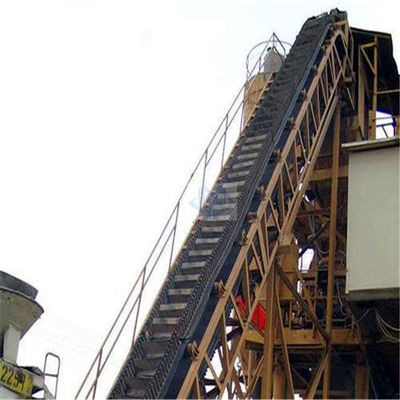

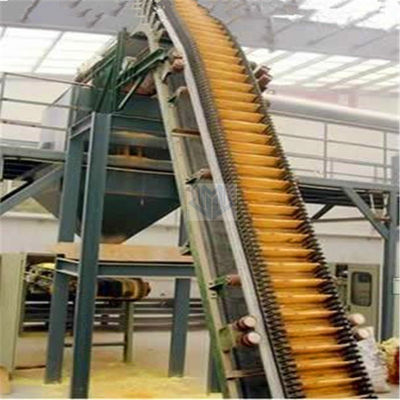

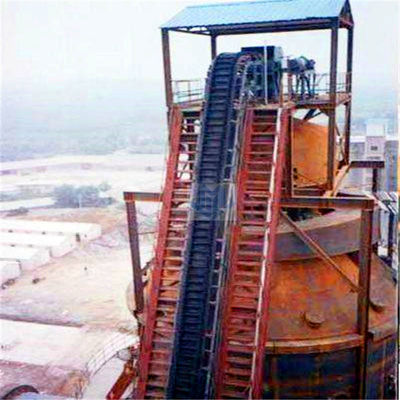

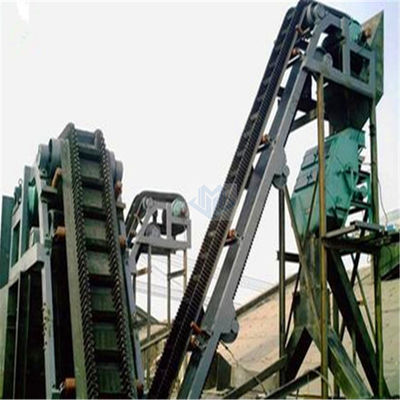

The large inclination angle belt conveyor can convey at a large angle or even vertically, and it is widely used because of its large conveying capacity, small footprint and simple maintenance.

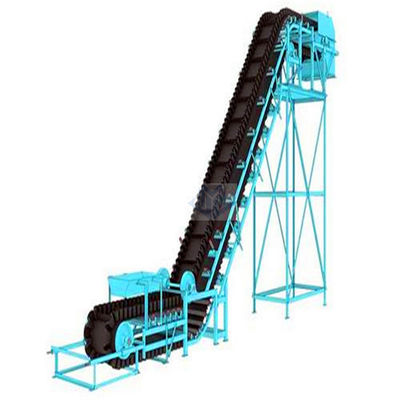

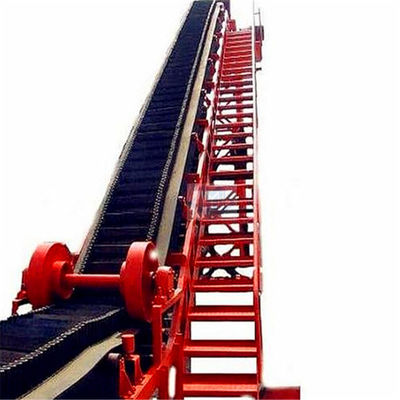

The conveyor belt structure of the large inclination belt conveyor is a corrugated vertical "skirt" on both sides of the flat rubber conveyor belt. In the middle of the skirt, a certain strength and elasticity of the horizontal partition is added to the conveyor belt to form a box-shaped bucket, so that the material can be continuously conveyed in the box-shaped bucket.
specification of standard high incline angles conveyor belt
| Angle |
Cleat mm Height
Conveying capacity |
80 | 100 | 120 | 160 | 200 | 240 | 300 | 400 |
|
Cleat spacing mm |
|||||||||
| 30 | 160 200 250 330 |
225 | 278 266 252 229 |
349 338 323 300 |
493 482 467 444 |
552 | 746 734 720 697 |
936 912 |
1200 |
| 35 | 160 200 250 330 |
203 186 |
257 240 219 186 |
329 312 291 258 |
458 435 402 |
543 510 |
725 708 687 654 |
903 870 |
1158 |
| 40 | 160 200 250 330 |
183 161 |
237 215 188 146 |
309 287 260 217 |
431 435 402 |
512 469 |
705 683 658 613 |
872 829 |
1117 |
| 45 | 160 200 250 330 |
164 137 110 83 |
218 191 158 120 |
290 263 230 179 |
434 407 374 321 |
515 482 429 |
686 659 626 573 |
842 789 |
1077 |
| 50 | 160 200 250 330 |
145 116 93 70 |
198 168 134 102 |
271 240 201 152 |
415 384 345 282 |
492 453 390 |
667 636 597 534 |
812 750 |
1038 |
| 55 | 125 200 250 330 |
157 101 81 61 |
212 146 117 88 |
264 216 174 132 |
427 360 315 246 |
468 423 352 |
612 567 495 |
783 711 |
1000 |
| 60 | 125 200 250 330 |
142 89 71 54 |
197 129 103 78 |
271 192 154 116 |
336 285 217 |
444 393 312 |
588 537 456 |
753 672 |
960 |
| 65 | 125 200 250 330 |
127 79 63 48 |
181 115 92 69 |
253 171 291 220 |
311 255 |
420 361 278 |
563 506 415 |
722 630 |
920 |
| 70 | 125 200 250 330 |
114 71 57 43 |
165 103 82 62 |
237 154 123 93 |
285 229 173 |
394 330 250 |
538 474 373 |
689 588 |
876 |
| 75 | 125 | 103 | 149 | 219 |
