Heavy Duty Crawler Transfer Conveyor Material Open Cast Mines
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI-ZHIGO |
| Certification: | manufacture certificate |
| Model Number: | customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Product: | Crawler Conveyor | Painting: | According To ISO12944 |
|---|---|---|---|
| Color: | Advise By User | Capacity: | 3000 T/h |
| Character: | Durable | Advantage: | High Performance |
| Benefit: | Low Cost | Material: | Carbon Steel |
| High Light: | Heavy Duty Crawler Transfer Conveyor,Heavy Duty Stockyard Stacker,Cast Mines unloading conveyor |
||
Product Description
Product Introduction of Crawler-Mounted Transfer Conveyors
Applications
Crawler-Mounted Transfer Conveyors is mainly used at the end of open-pit waste dump or other bulk material transportation and discharge production lines. It is widely used in all kinds of mining and earthwork, gravel and rock excavation projects.
Feature
The equipment has good mobility, convenient installation, operation and maintenance, and stable and reliable operation.
Composition
The Crawler-Mounted Transfer Conveyors is mainly composed of discharge boom, discharge belt conveyor, rotary steel structure, crawler walking mechanism, tower, rotary device, luffing device, receiving boom, receiving belt conveyor, operation room, electrical equipment, etc.
Working principle
During operation, the unloading truck will transport the materials to the receiving belt conveyor of the dumper, then the receiving belt conveyor will transport them to the discharging belt conveyor, and finally the materials will be discharged to the dump.
Table of equipment selection parameters
| description | parameter | unit |
| material | dinas | |
| density | 1.5~2.3 | t/m3 |
| granularity | <200 | mm |
| moisture | <8 | % |
| capacity | 200~5000 | t/h |
| Radius of gyration | 25~45 | m |
NOTICES
The customer shall provide the following information when place order:
- character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
Applicatios

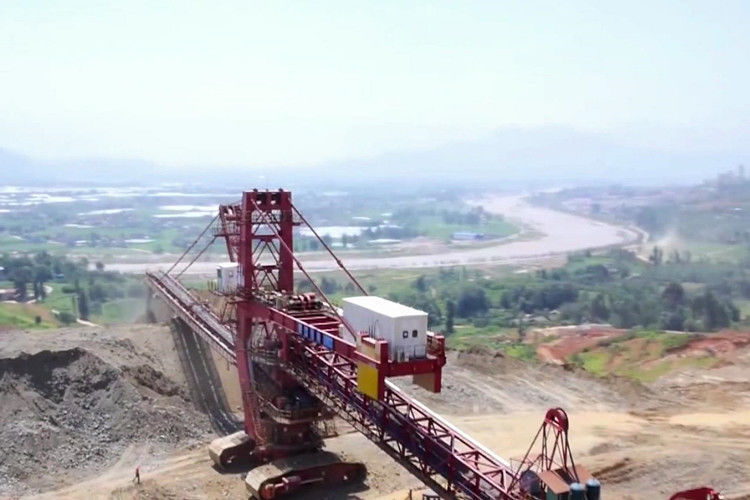

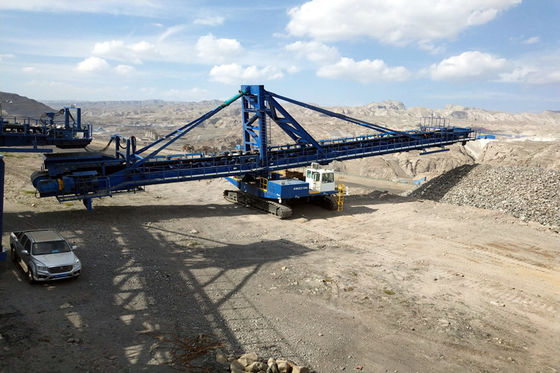

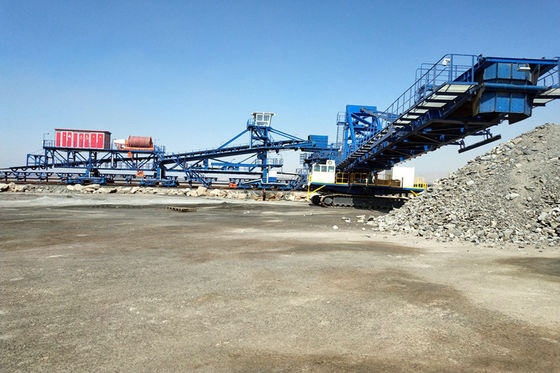

Case1
Case2
Case3
Case4
Case5
Photos of our factory
