ABS Certificate 5t15m Stiff Boom Marine Crane For General Cargo Handling
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | ABS/BV/CCS/GL/RINA/RMRS |
| Model Number: | 5t15m |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 90000 |
| Packaging Details: | nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, L/C |
|
Detail Information |
|||
| Product: | 5t15m Stiff Boom Crane | Color: | Blue |
|---|---|---|---|
| Character: | Electric Hydraulic | Model: | 5t15m |
| Type: | Stiff Boom | Painting: | HEMPEL |
| Price: | Cost Effective | Wire Rope: | Galvanised Non-rotating |
| High Light: | Stiff Boom Marine Crane,ABS Certificate Stiff Boom Crane,Corrosion Resistant Surface Treatment Marine Crane |
||
Product Description

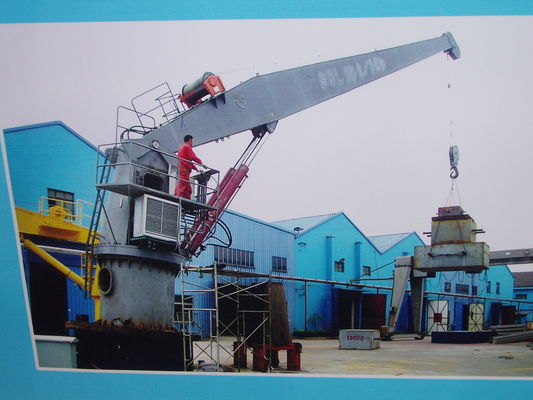

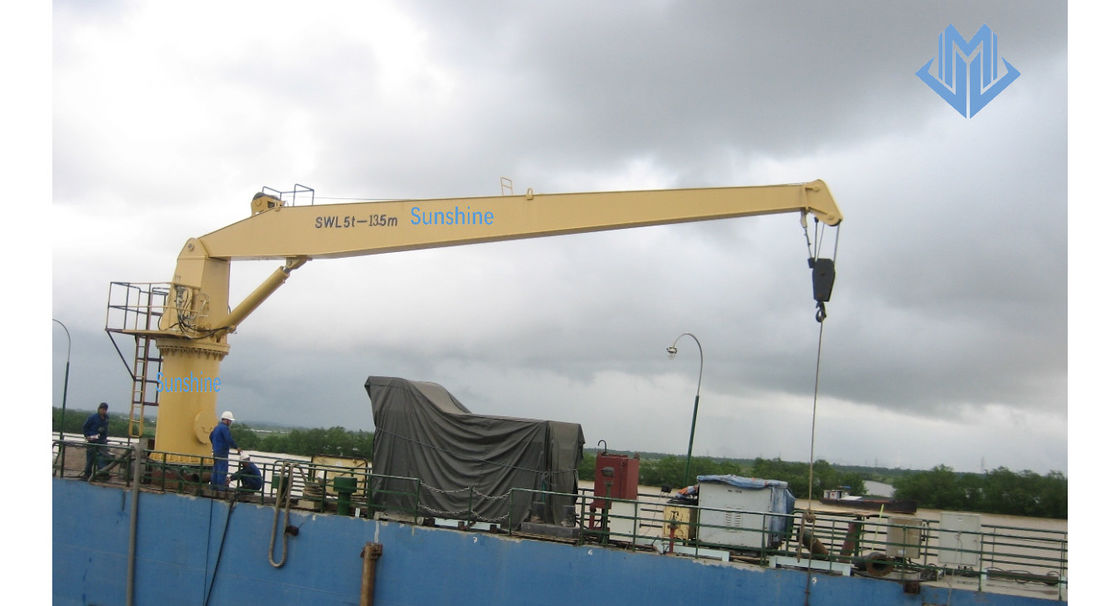

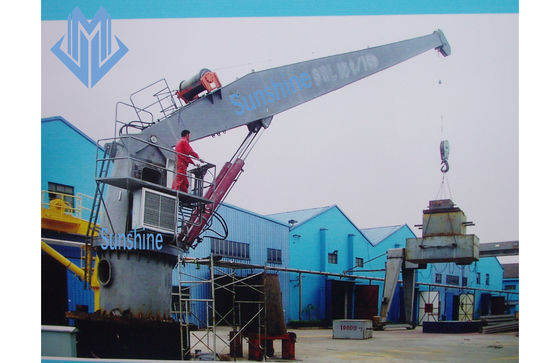

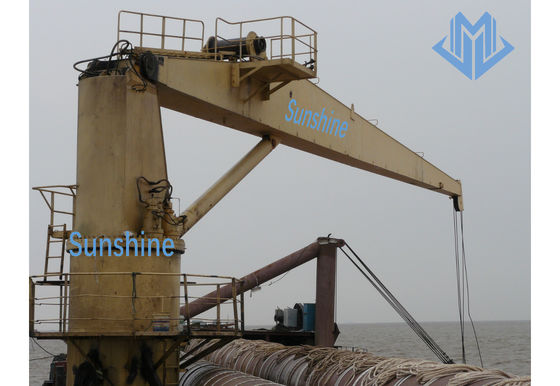

5t15m stiff boom marine crane with ABS certificate for general cargo handling
The stiff box boom marine crane is tailor made based on the specification requirement. The stiff boom marine crane is designed as an electro-hydraulic driven stiff boom crane, with integrated electro-hydraulic power package or independent electro-hydraulic power package, delivered as a complete unit ready for installation to foundation. The stiff boom crane can be equipped with different accessories and class certified by all leading classification societies.
Technical specification
| 1 | SWL | see load chart |
| 2 | Max working radius | 15m |
| 3 | Min working radius | 4.2m |
| 4 | Hosting speed | 0~15m/min |
| 5 | Slewing speed | 1r/min |
| 6 | Slewing angle | 360° free |
| 7 | Luffing time | 60s |
| 8 | Hook travel | 30m |
| 9 | Working condition | |
| Heel |
≤ 5° |
|
| Trim | ≤ 2° | |
| 10 | Electric motor | |
| Power | 37 Kw | |
| Speed | 1480r/min | |
| Power source | 380V 50Hz, | |
| Protect class | F | |
| Working type | S1 | |
| 11 | Flow | 80L/min |
| 12 | Design temperature | -10°~40° |
| 13 | Dead weight | ~10500 kg |

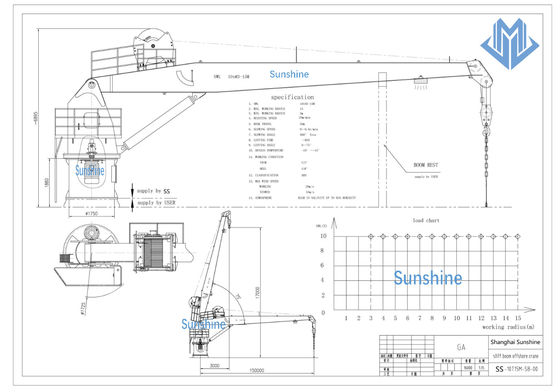

General drawing

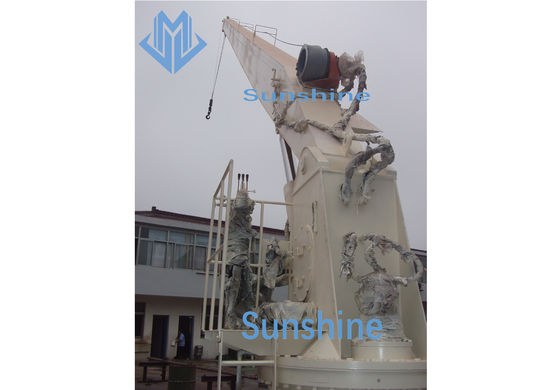

Photos of our factory
