10t10m Electric Hydraulic Telescopic Boom Marine Crane For Offshore Support Vessel
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | ABS/BV/CCS/GL/RINA/RMRS |
| Model Number: | 10t10m |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 50000 |
| Packaging Details: | nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, L/C |
|
Detail Information |
|||
| Product: | Telescopic Boom Crane | Painting: | Jotun |
|---|---|---|---|
| DFT: | 350um | Component: | European Brand |
| Type: | Telescopic Boom | Electric Component: | ABB Or Siemens |
| Power: | 380V Or 440V | Steel Structure: | Welding |
| High Light: | Telescopic Boom Marine Crane,Hydraulic Boom Marine Crane 10t10m,Offshore Support Vessel Marine Crane |
||
Product Description

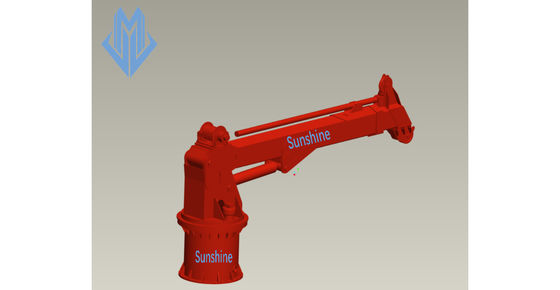

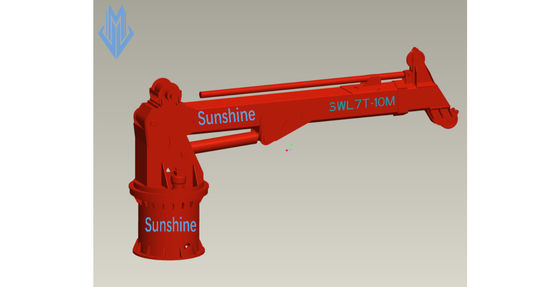

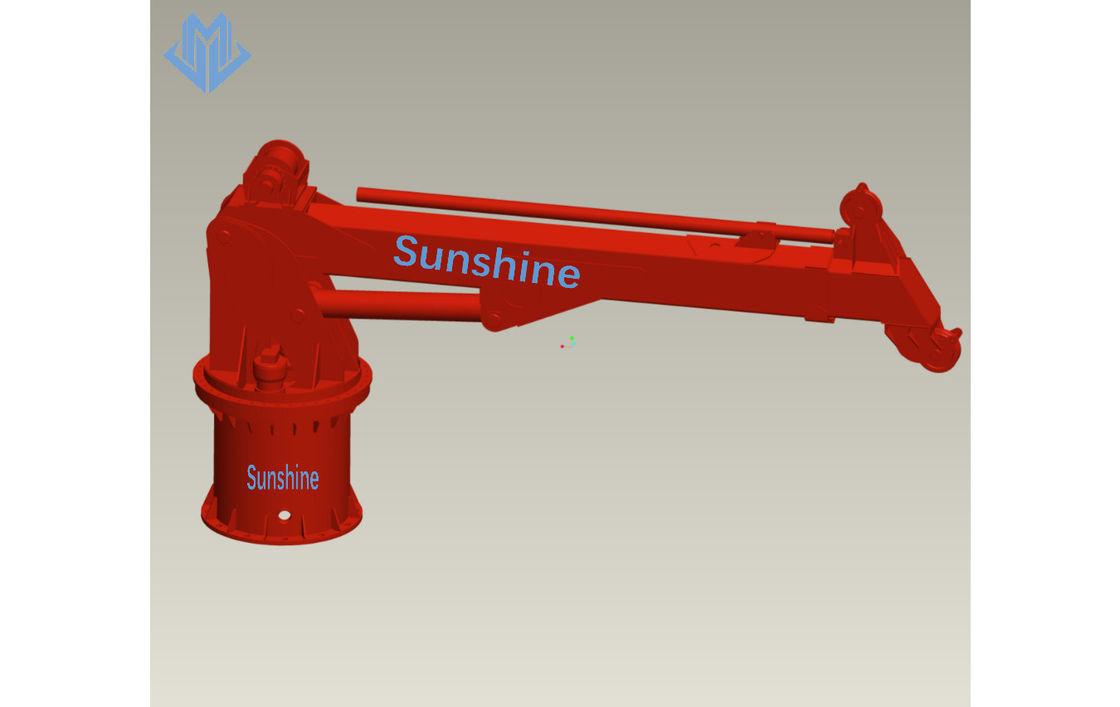

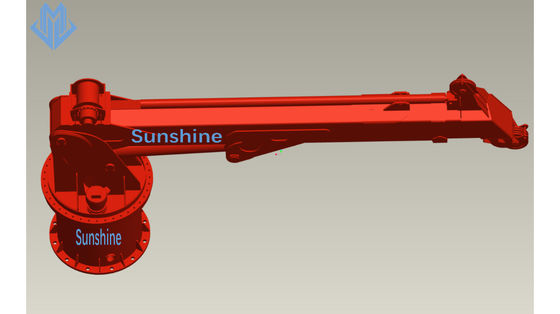

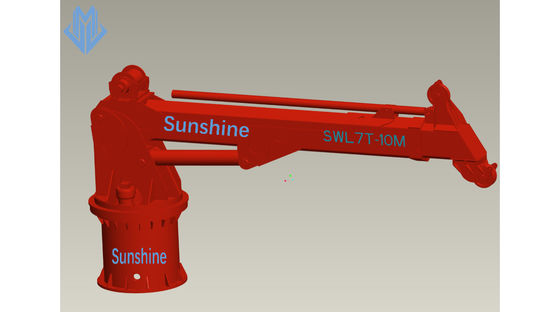

10t10m electric hydraulic telescopic boom marine crane for offshore support vessel
The telescopic box boom marine cranes are designed as an electro-hydraulic driven telescopic boom crane, with integrated electro-hydraulic power package or independent electro-hydraulic power package, delivered as a complete unit ready for installation to the foundation. The telescopic boom cranes offer a compact size when in stowed position solution. Customized to your required specifications. The crane is equipped with a hydraulic powered winch, hydraulically powered luffing, hydraulic-powered extension, and a hydraulic powered slewing system.
Technical specification
| 1 | SWL | 10t@10m |
| 2 | Max working radius | 10m |
| 3 | Min working radius | 2m |
| 4 | Hosting speed | 0~12m/min |
| 5 | Slewing speed | 0.7r/min |
| 6 | Slewing angle | 360° free |
| 7 | Luffing time | 40s |
| 8 | Hook travel | 25m |
| 9 | DFT of painting | 320um |
| 10 | Extension time | 20s |
| 11 | Working condition | |
| Heel | ≤ 5° | |
| Trim | ≤ 2° | |
| 12 | Electric motor | |
| Power | 37Kw | |
| Speed | 1480r/min | |
| Power source | 440V 50Hz, | |
| Protect class | F | |
| Working type | S1 | |
| 13 | Flow | 100L/min |
| 14 | Design temperature | -10°~40° |
| 15 | Dead weight | ~10000 kg |
General drawing
