Tail Lift Equal To European Product Quality
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | Mill certificate |
| Model Number: | SSI-750 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 1300 |
| Packaging Details: | nude |
| Delivery Time: | 15 days |
| Supply Ability: | 20000 set/ yesr |
|
Detail Information |
|||
| Description: | Tail Lift | Benefit: | Reliable |
|---|---|---|---|
| Capacity: | 750 Kg | Model: | SSI-750 |
| Price: | Cost Effective | Service Life: | Long Lasting |
| Character: | Easy Mounting On Truck | Material: | Aluminium |
| High Light: | 750 kg tail lift,mounting on truck cantilever tail lift,aluminium lift gate |
||
Product Description
Tail Lift Equal to Hiab quality
A tail lift is a fantastic mechanical device designed to facilitate the material handling of goods from ground level to the level of the truck bed. It makes the loading and unloading work from truck bed to ground or from ground to the truck bed is so easy.
Tail lift is a kind of hydraulic lifting and handling equipment, which is installed at the rear of vehicle and powered by on-board battery. It has been popular in developed countries in Europe and the United States for 30 to 40 years. In the 1990s, it was introduced into mainland China through Hong Kong and Macao and quickly accepted by customers. When loading and unloading goods, the van with tail lift is not limited by the site, equipment and manpower. Even if only one person can complete the loading and unloading of goods. The tail lift loading and unloading is fast, safe and efficient, which can greatly improve the transportation loading and unloading efficiency. It is a necessary equipment for modern logistics transportation. It is widely used in logistics, finance, petrochemical, tobacco, commerce, manufacturing and other industries.
The taillift has the characteristics of fast, safe and efficient, which can greatly improve the transportation loading and unloading efficiency. It is one of the necessary equipment for modern logistics transportation. Widely used in logistics, post, tobacco, petrochemical, commerce, finance, manufacturing and other industries
Fast: simply control the lifting and lowering of the tail lift through the operation button, and the goods can be easily transferred between the ground and the carriage.
Safety: The use of tailboard can make the loading and unloading of goods easy without manpower, improve the safety guarantee of operators, reduce the damage rate of goods during loading and unloading, especially for flammable, explosive and fragile goods, which is more suitable for tail lift loading and unloading.
High efficiency: loading and unloading with tail lift can be completed by one person without other equipment and restriction of site and personnel. It can effectively save resources, improve work efficiency, and give full play to the economic efficiency of vehicles
SPECIFICATION
| Model | SSI-2500 |
| Lifting capacity | 2500 kg |
| Lifting gear hydraulic | 2 lifting cylinder/2 tilting cylinder |
| Main beam | 180mm*180mm |
| Lifting arm pitch | 1310mm |
| Load center, longitudinal | 700mm |
| Load center, across centre | central, 50% rated load on one side |
| Platform overlap with floor | -57mm |
| Inclination angle of the platform | +90°~-10° |
| Power source | DC 12V or 24V |
General drawing

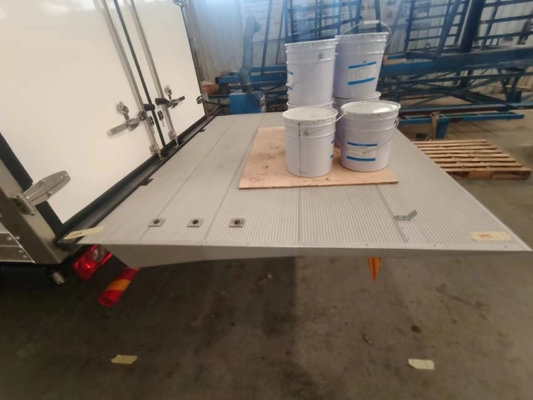

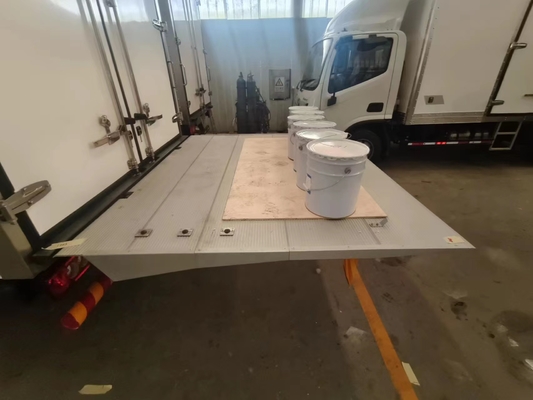

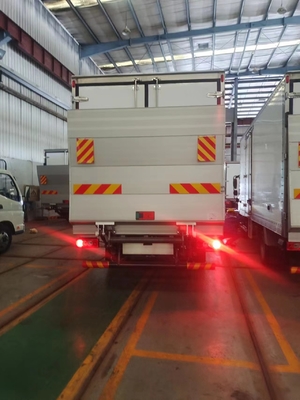

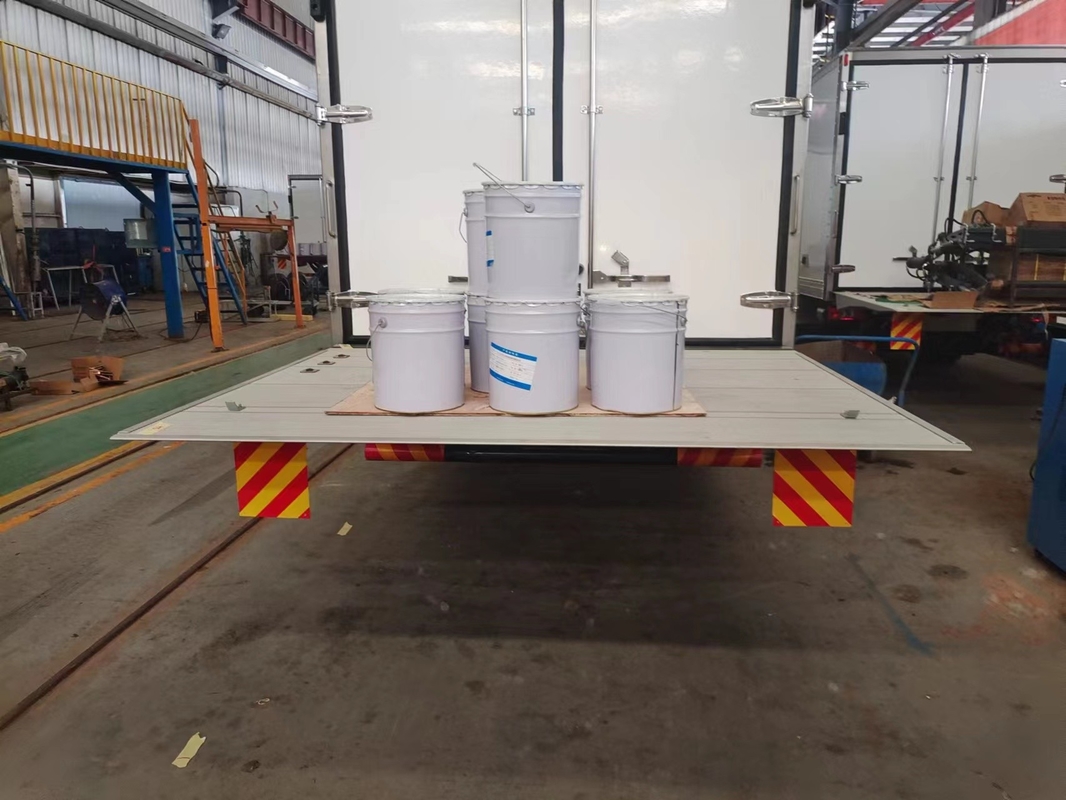

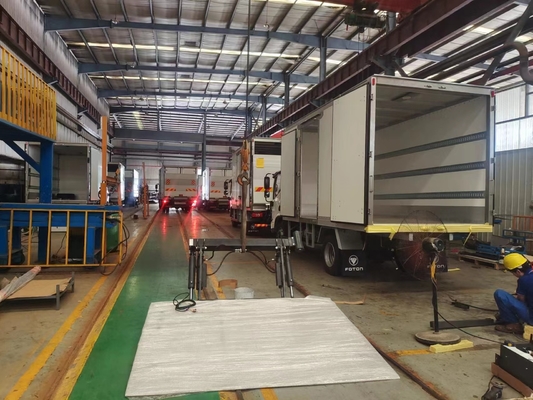

Demonstration pictures
