Compact screw ship unloader applied to unload cement at seaport
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Product: | Ship Unloader | Painting: | Jotun |
|---|---|---|---|
| Color: | Grey | Capacity: | 100 T/h |
| Material: | High Quality Steel | Component: | International Brand |
| Application: | Seaport | Price: | Cost Effective |
| High Light: | ship unloader,screw ship unloader,compact screw ship unloader |
||
Product Description
Compact screw ship unloader applied to unload cement at seaport
The compact screw ship unloader is specifically designed for unloading bulk materials applied to seaport, it`s widely applied to handle grain, cement, and some other bulk materials. The kind of ship unloader is mainly using to unload small vessls.
The convey system of the compact screw shiop unloader is by using total enclosed screw conveyor, so there will be no dust to emission when unloading the vessel. It`s environment firendly.
The screw ship unloader is mainly composed of gantry, turntable, horizontal screw, vertical screw and feeder. Its biggest advantage is that the operation process is carried out in a closed state without dust pollution. Its appearance and weight are smaller than other continuous ship unloaders, but its energy consumption is large. Generally, it is mainly used to unload coal, cement, bulk grain, chemical fertilizer, potassium salt and other bulk materials.
Technical Typical Specification
| model | LC60 | LC100 | LC150 | LC200 | LC300 |
| Rated capacity t/h | 60 | 100 | 150 | 200 | 300 |
| Power source | 380v 50hz | ||||
| Total power kw | 53 | 70 | 86 | 121 | 159 |
| L1 | 7 | 8 | 9 | 10 | 11 |
| H1 | 6 | 7 | 8 | 9 | 10 |
| Horizontal swing angle | ±30°≥@≥40° | ||||
| Vertical swing angle | ±30°≥@≥40° | ||||
| Swing angle | 270° | ||||
| Overall dimension L*W*H | 12.5*3*8.5 | 13.5*3*9.5 | 14.5*3.5*10.5 | 15.5*4.4*11.5 | 15.5*4.4*11 |
| Base size | 1.75*1.75 | 1.75*1.75 | 1.85*1.85 | 1.95*1.95 | 2.0*2.0 |
Main component
| 1.screw conveyor | |
| L1:screw conveyor | Out dimeter:325mm,length 3m,wall thickness 8mm,motor 22KW,China Bearing :UCFC: Japan |
| L2:screw conveyor | Out dimeter:355mm,length 5m,wall thickness 10mm,motor 22KW,China Bearing :UCFC Japan |
| L3:screw conveyor | Out dimeter:377mm,length 10m (If on truck,L3:11m),wall thickness 10mm,motor 30KW,China bearing:UCFC Japan |
| L4:screw conveyor | Out dimeter:508mm,length 11m,wall thickness 8mm,motor 37KW,China. Bearing :UCFC Japan |
| 1.2)material reclaiming head | Hydraulic motor ,china |
| Slewing mechanism | |
| 1.1)slewing bearing:1 |  |
| 1.2)slewing driver | |
| 1.3)Connetor |
L1,L2:1, L2,L3:1, L3 and frame:1 Frame and L4:2 |
| Hydraulic components | |
| Hydraulic cylinder , hydraulic pump, solenoid valve, (Taiwan China) hydraulic motor 11kw,(Taiwan China) | |
|
Electrical cabinet Size :1000x1000x250mm power:180KW |
|
| Wireless Remote control ,(Taiwan China) | |

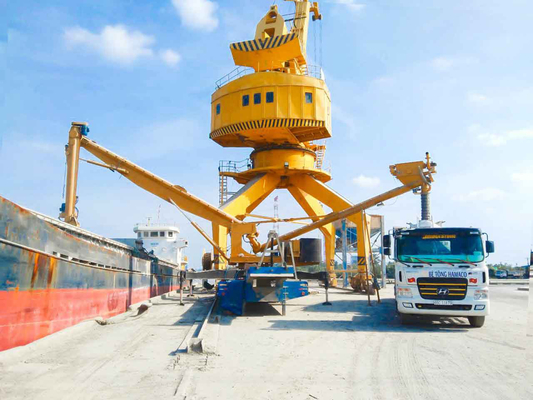

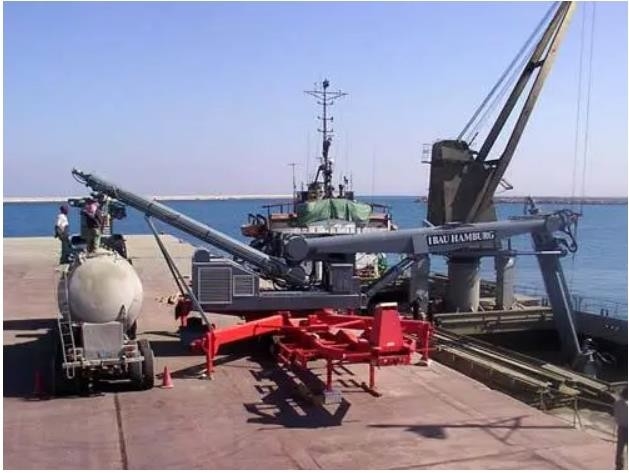

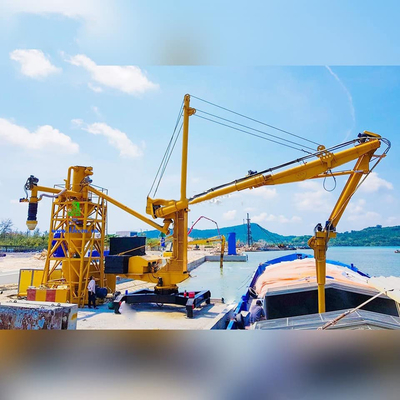

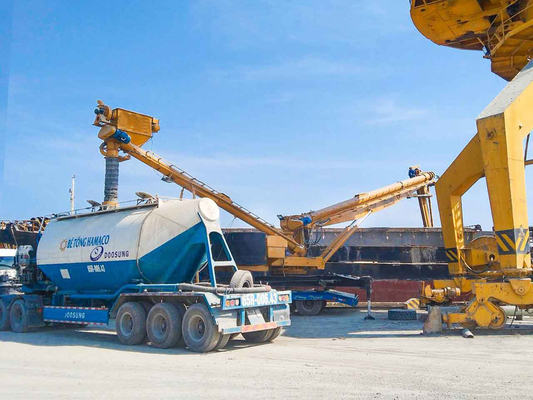

Some cases
