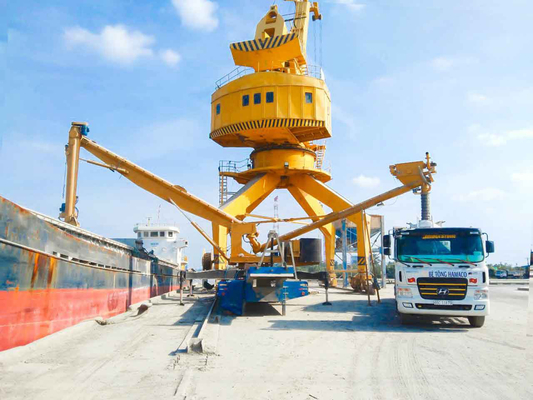

Truck mounted screw Type Ship Unloader for cement unloading
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | nude |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Description: | Screw Ship Unloader | Painting: | Jotun |
|---|---|---|---|
| Color: | Blue | Capacity: | 150 T/h |
| Steel Structure: | High Quality Steel | Welding: | GMAW |
| Allpication: | Cement | Benefit: | Low Maintenance |
| High Light: | traveling ship unloader,screw ship unloader,ship unloader |
||
Product Description
Truck mounted screw Type Ship Unloader for cement unloading
Screw-type ship unloaders can be divided into self-propelled, fixed, and floating types according to whether the whole machine can be traveled and the installation position. They are suitable for different wharf loading and unloading process systems.

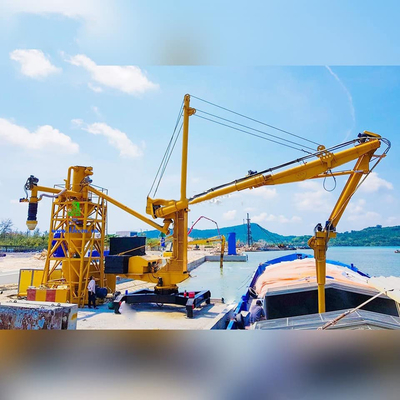

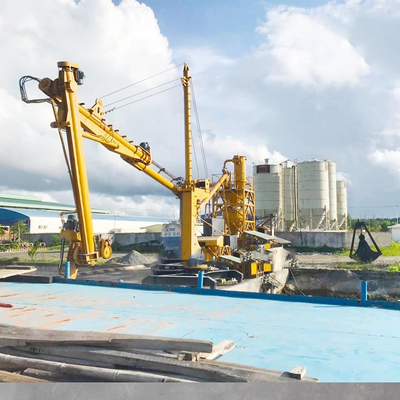

The self-propelled screw ship unloader is characterized by a traveling mechanism, which can walk along the track laid at the front of the wharf. It uses the cooperation of walking, rotation, pitch, and swing to unload the cargo hold of seagoing ships. In addition to unloading to the belt conveyor parallel to the wharf shoreline, the discharged materials can also be transferred to the belt conveyor that can pitch around the hinge point at the end of the gantry to directly send the materials to the storage yard.
The self-propelled screw ship unloader is suitable for coastal and inland ports with vertical quay walls. The target ships are various bulk cargo ships. In the loading and unloading process system of the special wharf for bulk cargo such as cement, chemical fertilizer, grain, and coal, the self-propelled screw ship unloader has many successful experiences and has increasingly proved to be an economic and efficient ship unloading equipment. Self-propelled screw ship unloader has also been applied in coal unloading operation at power plant wharf.
Technical Specification
| model | LC60 | LC100 | LC150 | LC200 | LC300 |
| Rated capacity t/h | 60 | 100 | 150 | 200 | 300 |
| Power source | 380v 50hz | ||||
| Total power kw | 53 | 70 | 86 | 121 | 159 |
| L1 | 7 | 8 | 9 | 10 | 11 |
| H1 | 6 | 7 | 8 | 9 | 10 |
| Horizontal swing angle | ±30°≥@≥40° | ||||
| Vertical swing angle | ±30°≥@≥40° | ||||
| Swing angle | 270° | ||||
| Overall dimension L*W*H | 12.5*3*8.5 | 13.5*3*9.5 | 14.5*3.5*10.5 | 15.5*4.4*11.5 | 15.5*4.4*11 |
| Base size | 1.75*1.75 | 1.75*1.75 | 1.85*1.85 | 1.95*1.95 | 2.0*2.0 |
