Stockyard Bulk Cargo Handling Equipment Drum Type Coal Reclaimer Stacker
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HHI |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Product: | Drum Reclaimers | Capacity: | 3500 T/h |
|---|---|---|---|
| Painting: | PPG | Color: | Yellow |
| Character: | Drum Type | Advantage: | Low Maintenance |
| Price: | Reasonable | Application: | Stockyard |
| High Light: | Stockyard Drum Reclaimer,Drum Type Reclaimer,Coal Drum Reclaiming |
||
Product Description

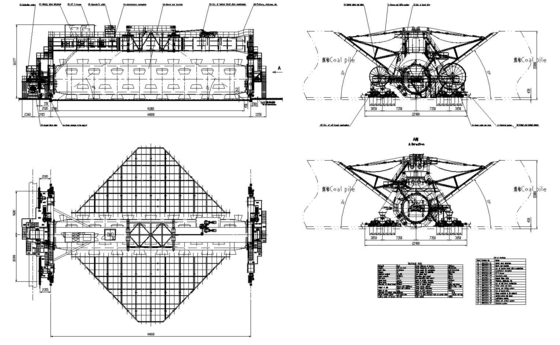

Drum Reclaimers For Reclaiming Material
The drum reclaimers, traveling a horizontal runway, are designed to service parallel storage piles in bidirectional operation in an open stockpiles/yard type storage. The must have 3,500 tons per hour capacity to handle <300 mm sized coal.
It moves on a rail undercarriage along the length of the stockyard. The drum provides a continuous homogenized supply of coal stored on the homogenization stockyard to a follow-up train loader.

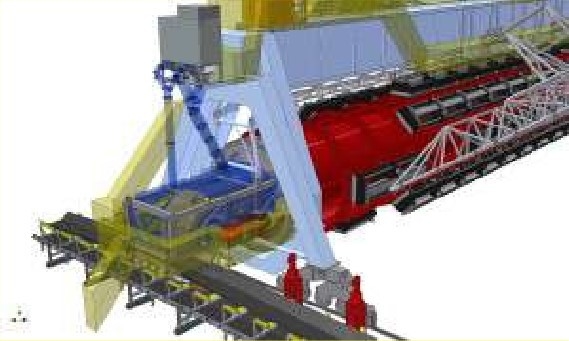

Material is unpiled through both-side buckets mounted over the total width of the drum uniformly over the total width of the stockyard in the continuous working cycle, even if the material is irregularly distributed on the stockyard. A uniform flow of material to buckets is provided by a spreading device that shapes a profile of the material being filled. Material inside the drum slides from buckets to a loading belt that conveys material from the drum to a drawing-off conveyor. When the drum is rotating, the machine slowly moves in the longitudinal direction of the stockyard while the spreading device simultaneously oscillates in the transverse direction.
Specification of drum reclaimer
| description | parameter | unit |
| material | Coal, ore, etc | |
| density | 0.8~2.3 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| reclaiming capacity | 200~4000 | t/h |
| rail span | 20~50 | m |
NOTICES
The customer shall provide the following information when placing order
- The character of bulk material
- Stockyard information
- Process flow chart
- Power supply
- Communication and control requirements
