Speed Adjustable Electrical Wagon Unloading System
Product Details:
| Place of Origin: | china |
| Brand Name: | SSI-WH |
| Certification: | manufacture certificate |
| Model Number: | SSI-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Material: | High Quality Steel | Color: | Red |
|---|---|---|---|
| Paint: | Jotun | Item: | Wagon Unloading System |
| Character: | Durable | Steel Structure: | Welding |
| Benefit: | Low Cost | Price: | Cost Effective |
| High Light: | Speed Adjustable Wagon Unloader,Electrical Wagon Unloading System,Unloading Wagon Tippler |
||
Product Description
speed adjustable electrical wagon unloading system

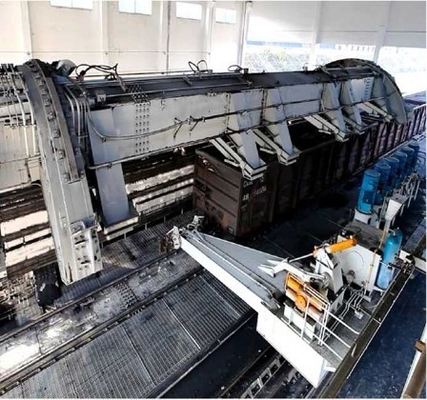

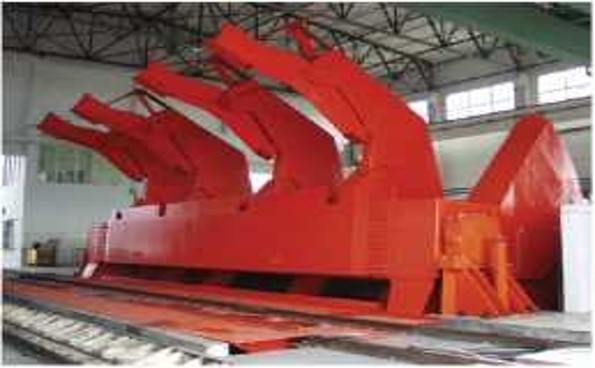

The wagon unloading system is of turn-back type and through type. The empty train line is used for the turnback dumper system. After the empty rail car is unloaded, the empty wagon is moved to the empty rail car line through the transverse shifter, and then pushed out from the transverse shifter to the empty car line and collected by the empty car pusher. The system includes a car dumper, side arm charger, traverser, empty car propeller, wheel gripper, etc. There is no empty car line in the through layout, and the empty car is pushed to the other side of the car dumper by the side arm charger for collection after unloading. The layout type is determined by the land occupation and general layout of the site
| parameters of train bumper number | ||||||||||||||
| Number of vehicles overturning at the same time type tipping | Type | Tipping capacity applicable | Applicable models | Model size(mm) | Tipping weight (T) | Rotation angle (°) | Slewing speed starting | Starting and braking time rotation | Rotation time | |||||
| (knots / hour) | long | wide | high | rated | max | normal | max | r/min | s | s | ||||
| 1 | C | Turn back | 20-24 | C50～C60 | 11938～14038 | 3140～3243 | 2790～3594 | 100 | 110 | 160 | 175 | 1 | 8 | 65-75 |
| 2 | O | penetration | 58-74 | C60 | It can be adjusted according to the actual model | 2x84 | 2x110 | 160 | 170 | 2.8 | 8 | 35-45 | ||
| C | Turn back | 32-36 | C60 | 220 | 240 | 165 | 175 | 1.2 | 8 | 50-70 | ||||
| 3 | O | penetration | 90 | C80～C100 | 300 | 372 | 165 | 180 | 1.885 | 6 | 40-60 | |||
| C | Turn back | 42 | C61～C96 | 300 | 372 | 175 | 175 | 1.09 | 8 | 50-75 | ||||
| 4 | O | penetration | 112 | C80 | 400 | ellipsis | 165 | ellipsis | 1.885 | 3 | 35-45 | |||
