Truck Mounted Tail Lift For Load And Unload Goods
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | Mill certificate |
| Model Number: | SSI-2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 1300 |
| Packaging Details: | nude |
| Delivery Time: | 15 days |
| Supply Ability: | 20000 set/ yesr |
|
Detail Information |
|||
| Description: | Tail Lift | Benefit: | Reliable |
|---|---|---|---|
| Capacity: | 2000 Kg | Model: | SSI-2000 |
| Price: | Cost Effective | Service Life: | Long Lasting |
| High Light: | Truck Mounted Tail Lift,Unload Goods Lorry Tail Lift,Load Tail Lift Truck |
||
Product Description
Innovative tail lift for mounting on truck to load and unload goods
A tail lift is a fantastic mechanical device designed to facilitate the material handling of goods from ground level to the level of the truck bed. It makes the loading and unloading work from truck bed to ground or from ground to the truck bed is so easy.
SPECIFICATION
| Model | SSI-2000 |
| Lifting capacity | 2000 kg |
| Lifting gear hydraulic | 2 lifting cylinder/2 tilting cylinder |
| Main beam | 180mm*180mm |
| Lifting arm pitch | 1310mm |
| Load center, longitudinal | 700mm |
| Load center, across centre | central, 50% rated load on one side |
| Platform overlap with floor | -57mm |
| Inclination angle of the platform | +90°~-10° |
| Power source | DC 12V or 24V |
General drawing

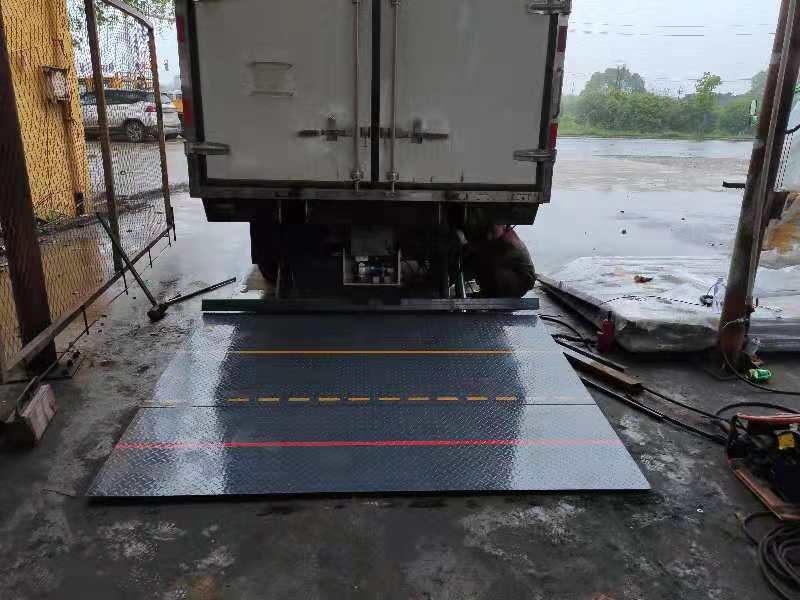

Demonstration pictures
