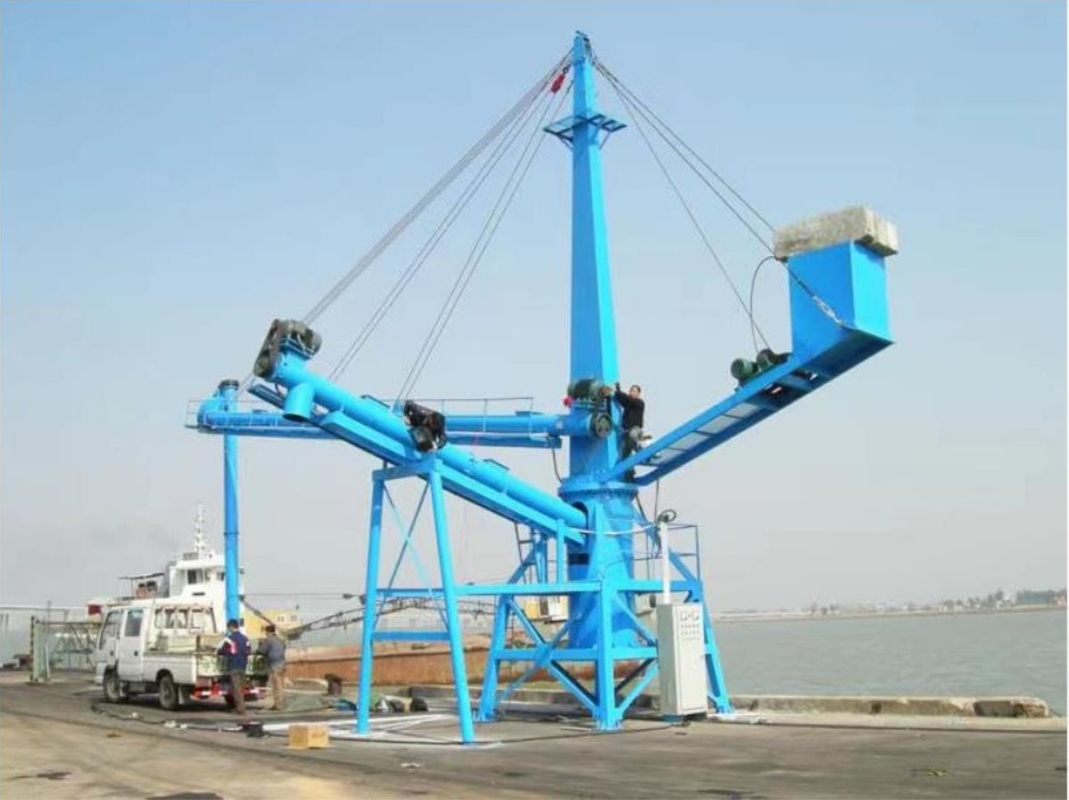

Stationary Continues Screw Ship Unloader For Unloading Grain
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI-HDCZ |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $1,500,000-5,000,000/ Set |
| Packaging Details: | Wooden case or bare |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets / year |
|
Detail Information |
|||
| Description: | Screw Ship Unloader | Painting: | Jotun |
|---|---|---|---|
| Color: | Blue | Capacity: | 150 T/h |
| Steel Structure: | High Quality Steel | Welding: | GMAW |
| NDT: | UT | Benefit: | Low Maintenance |
| High Light: | Continues Screw Ship Unloader,Stationary Ship Unloading System,Unloading Grain Continuous Ship Unloader |
||
Product Description
Stationary screw type continues ship unloader for unloading grain from vessel to shore
Screw-type ship unloaders can be divided into self-propelled, fixed, and floating types according to whether the whole machine can be moved and the installation position. They are suitable for different wharf loading and unloading process systems.
The self-propelled screw ship unloader is characterized by a traveling mechanism, which can walk along the track laid at the front of the wharf. It uses the cooperation of walking, rotation, pitch, and swing to unload the cargo hold of seagoing ships. In addition to unloading to the belt conveyor parallel to the wharf shoreline, the discharged materials can also be transferred to the belt conveyor that can pitch around the hinge point at the end of the gantry to directly send the materials to the storage yard.
The self-propelled screw ship unloader is suitable for coastal and inland ports with vertical quay walls. The target ships are various bulk cargo ships. In the loading and unloading process system of the special wharf for bulk cargo such as cement, chemical fertilizer, grain, and coal, the self-propelled screw ship unloader has many successful experiences and has increasingly proved to be an economic and efficient ship unloading equipment. Self-propelled screw ship unloader has also been applied in coal unloading operation at power plant wharf.
Technical Specification
| model | LC60 | LC100 | LC150 | LC200 | LC300 |
| Rated capacity t/h | 60 | 100 | 150 | 200 | 300 |
| Power source | 380v 50hz | ||||
| Total power kw | 53 | 70 | 86 | 121 | 159 |
| L1 | 7 | 8 | 9 | 10 | 11 |
| H1 | 6 | 7 | 8 | 9 | 10 |
| Horizontal swing angle | ±30°≥@≥40° | ||||
| Vertical swing angle | ±30°≥@≥40° | ||||
| Swing angle | 270° | ||||
| Overall dimension L*W*H | 12.5*3*8.5 | 13.5*3*9.5 | 14.5*3.5*10.5 | 15.5*4.4*11.5 | 15.5*4.4*11 |
| Base size | 1.75*1.75 | 1.75*1.75 | 1.85*1.85 | 1.95*1.95 | 2.0*2.0 |
Main component
| 1.screw conveyor | |
| L1:screw conveyor | Out dimeter:325mm,length 3m,wall thickness 8mm,motor 22KW,China Bearing :UCFC: Japan |
| L2:screw conveyor | Out dimeter:355mm,length 5m,wall thickness 10mm,motor 22KW,China Bearing :UCFC Japan |
| L3:screw conveyor | Out dimeter:377mm,length 10m (If on truck,L3:11m),wall thickness 10mm,motor 30KW,China bearing:UCFC Japan |
| L4:screw conveyor | Out dimeter:508mm,length 11m,wall thickness 8mm,motor 37KW,China. Bearing :UCFC Japan |
| 1.2)material reclaiming head | Hydraulic motor ,china |
| Slewing mechanism | |
| 1.1)slewing bearing:1 |  |
| 1.2)slewing driver | |
| 1.3)Connetor |
L1,L2:1, L2,L3:1, L3 and frame:1 Frame and L4:2 |
| Hydraulic components | |
| Hydraulic cylinder , hydraulic pump, solenoid valve, (Taiwan China) hydraulic motor 11kw,(Taiwan China) | |
|
Electrical cabinet Size :1000x1000x250mm power:180KW |
|
| Wireless Remote control ,(Taiwan China) | |
