Heavy Duty Conveyor Belt For Bulk Materials Conveying In Mining
Product Details:
| Place of Origin: | China |
| Brand Name: | SSI |
| Certification: | manufacture certificate |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $500,000-1,000,000/ Set |
| Packaging Details: | nude |
| Delivery Time: | 6 months after receipt of advance payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets / year |
|
Detail Information |
|||
| Capacity: | 3000 T/h | Product: | Conveyor Belt |
|---|---|---|---|
| Painting: | Jotun | Color: | Grey |
| Motor: | ABB | Steel Work: | SA2.5 |
| Character: | Durable | Material: | Carbon Steel |
| High Light: | Bulk Material Conveying Equipment,Bulk Materials Heavy Duty Conveyor Belt,Mining Heavy Duty Conveyor Belt |
||
Product Description
Tailor Made Belt Conveyor for for Bulk Material Handling Heavy duty Conveyor Belt Conveyor belt
The SSI conveyor belt is mostly engineered, disigned, and maunfactured according to client`s technical specifications. This process allows us to create that will be the exact length and width at the angle required for your specify scenario.
SSI specializes in long distance, large, heavy duty conveyor belts are disigned for high performance and long service life.
Specification of bult conveyor
| Model | Capacity(t/h) | Belt width(mm) | Speed(m) | Max distance(m) | Power of Motor(kw) |
Diameter of pulley(mm)
|
Diameter of roller(mm) | Max incline angle(°) |
| DTS80/40/2*40S | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTS80/40/2*55S | 400 | 800 | 2 | 800 | 2*55 | 500 | 89 | +18 |
| DTL80/40/90S | 400 | 800 | 2 | 1000 | 90 | 630 | 108 | +18 |
| DTL80/40/2*40 | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTL80/40/2*55 | 400 | 800 | 2.5 | 800 | 2*40 | 630 | 89 | +18 |
| DTL100/63/2*75S | 630 | 1000 | 1.9 | 1000 | 2*75 | 630 | 108 | +18 |
| DTL100/80/160S | 800 | 1000 | 2.5 | 1000 | 160 | 630 | 108 | +18 |
| DTL100/80/2*160S | 800 | 1000 | 2.5 | 1500 | 2*160 | 630 | 108 | +18 |
| DTL120/120/2*160S | 1200 | 1200 | 2.5 | 1000 | 2*160 | 800 | 133/159 | ± 5 |
| DTL120/120/2*200S | 1200 | 1200 | 2.5 | 1000 | 2*200 | 800 | 133/159 | +18 |
| DTL120/150/2*160S | 1500 | 1200 | 3.15 | 1500 | 2*200 | 800 | 133/159 | +18 |
Applications

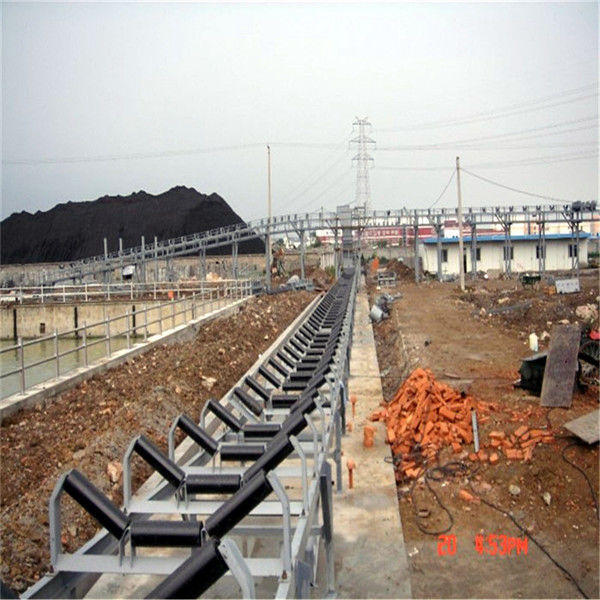

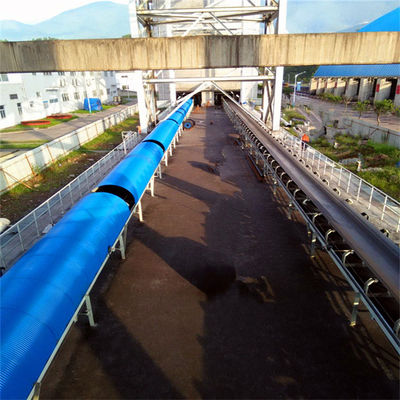

Case1

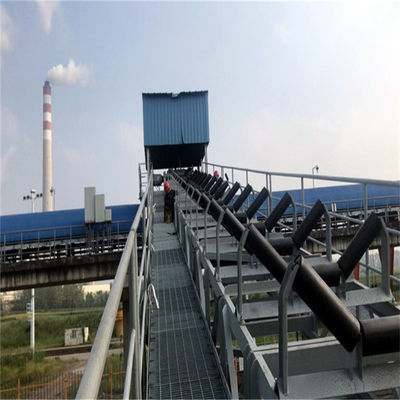

Case2

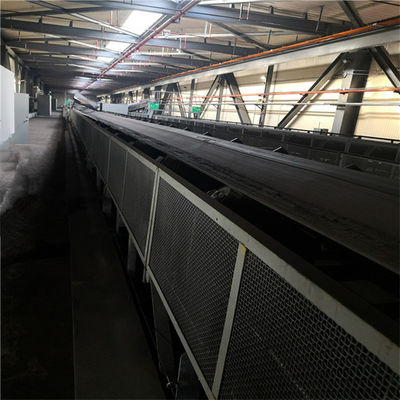

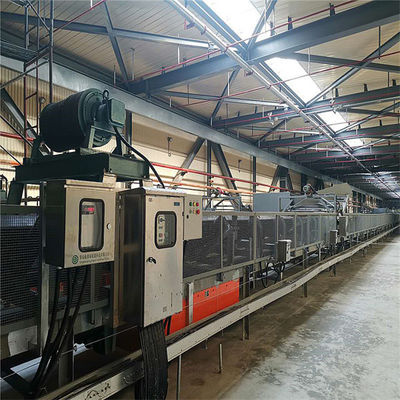

Photos of our factory
Want to Know more details about this product
